Introduction

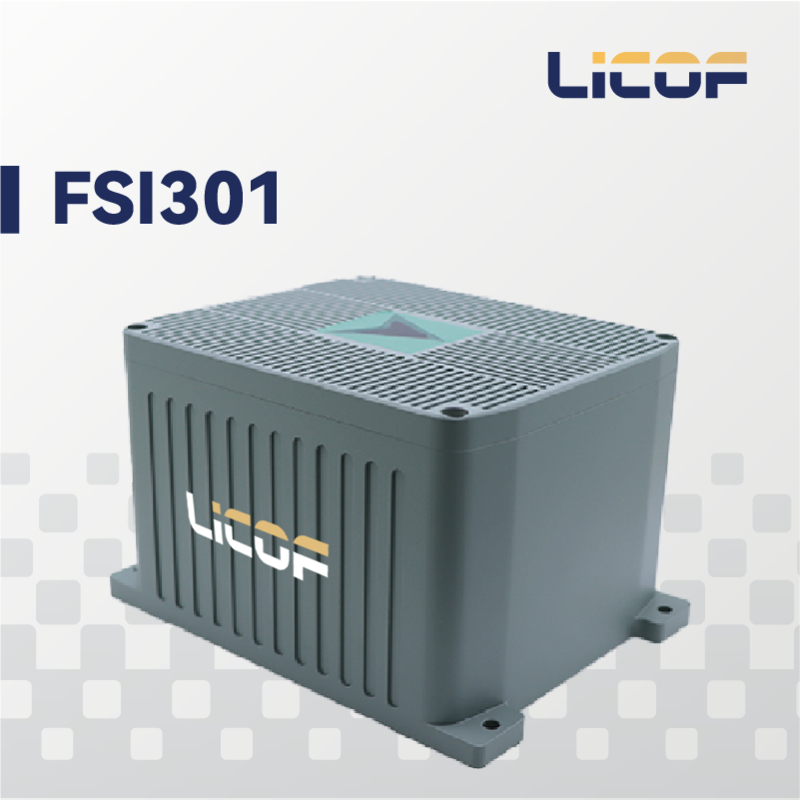

The FSI301 Fiber Optic Integrated Navigation System is a highly reliable, cost-effective fiber optic inertial/satellite integrated navigation system that can be widely used in navigation, control, and measurement fields, such as high-precision vehicle-mounted systems and medium-to-long endurance unmanned aerial vehicles (UAVs).
The system employs closed-loop fiber optic gyroscopes (FOG) and high-precision accelerometers, combined with professional-grade GNSS boards, and processes data through specially designed GNSS/INS data fusion software (GINS) to provide precise positioning information (longitude, latitude, and altitude), attitude information (pitch, roll, and heading), as well as three-dimensional acceleration, angular velocity, and other dynamic information, making it a medium to high-precision integrated navigation system.
The series of integrated navigation systems can be customized with different hardware and software configurations to meet user requirements. For specific navigation applications, the gyroscope can be replaced with a high-precision gyroscope to maximize flexibility and meet diverse user needs.
Technical Specification
The integrated navigation system integrates high-precision fiber optic gyroscopes and accelerometers within an independent structure. The gyroscopes and accelerometers selected for the system represent the leading level of process inertial components in the industry. The system has undergone full temperature parameter compensation for zero position, scale factor, non-orthogonal error, and acceleration-related terms, enabling it to maintain high measurement accuracy over extended periods.
The series of integrated navigation systems can be customized with different hardware and software configurations to meet user requirements. For specific navigation applications, the gyroscope can be replaced with a high-precision gyroscope to maximize flexibility and meet the diverse needs of different users.
Table 1 Performance parameters of LKF-FSI400
|
Performance |
Positioning Accuracy |
3 (single point), 0.02+1ppm (RTK) |
|
Self-alignment Accuracy |
0.1*sec L (L is local latitude), 1σ |
|
|
Heading Accuracy |
0.05°, 1σ (real-time); 0.01°, 1σ (post-processing) |
|
|
Attitude Accuracy |
0.02°, 1σ (real-time); 0.005°, 1σ (post-processing) |
|
|
Gyroscope |
Bias |
≤0.03°/h (1σ) |
|
Bias Stability (10s smoothing) |
0.03°/h |
|
|
Bias Repeatability (power-on) |
0.03°/h |
|
|
Non-linearity |
30 ppm |
|
|
Accelerometer |
Bias |
0.1mg (1σ) |
|
Bias Stability |
≤10 (μg, 10s smoothing) |
|
|
Bias Repeatability (power-on) |
≤20 (μg) |
|
|
Measurement Range |
Angular Velocity |
±300°/s |
|
Acceleration |
±20 g |
|
|
Power Supply |
Input Voltage |
12~36VDC (recommended 24V) |
|
Power Consumption |
≤15W |
|
|
Interface Features |
IMU Data Serial Port |
RS232/RS422; Data Rate: 200 Hz |
|
GNSS Data Serial Port |
RS232; Baud Rate: 115200 |
|
|
Environmental Conditions |
Operating Temperature |
-40°C to +70°C |
|
Storage Temperature |
-55°C to +85°C |
|
|
Vibration |
6 g @ 20~2000 Hz |
|
|
Shock |
100g/1ms |
|
|
Physical Characteristics |
Dimensions |
177 × 132 × 99 (mm) |
|
Weight |
≤3kg |

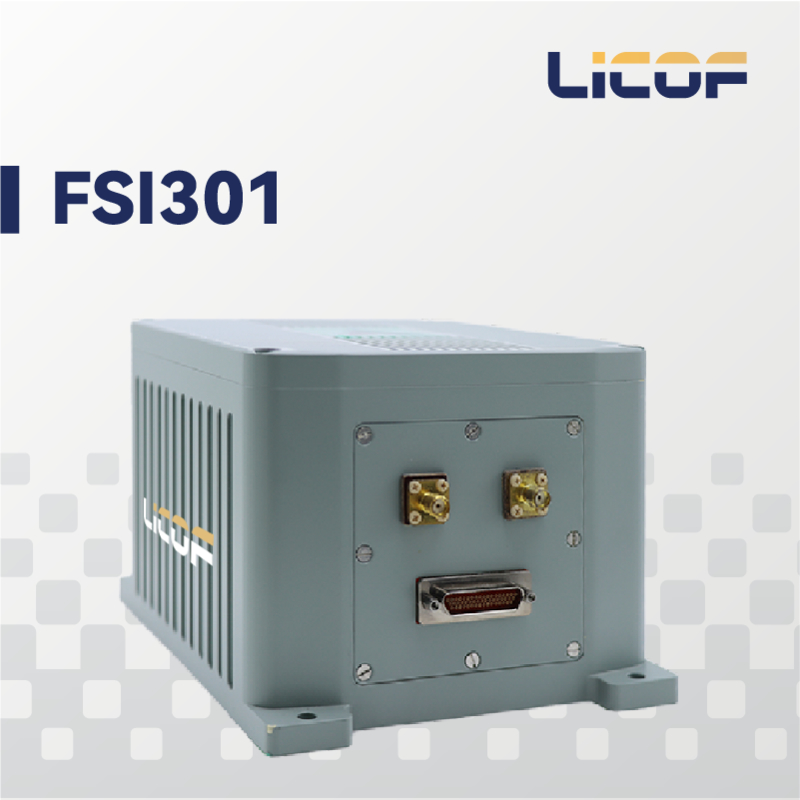

Table 2 The electrical interface of the gyroscope uses J30-15ZK connector
|
No. |
Defination |
No. |
Defination |
No. |
Defination |
|
1 |
GND |
2 |
GND |
3 |
GGND1 |
|
4 |
INS_RS422_TX+ |
5 |
JK_COMM1_TX+ |
6 |
INS_RS422_RX- |
|
7 |
JK_COMM1_RX- |
8 |
GGND1 |
9 |
IMU_RS232_TXD |
|
10 |
INS_RS232_TXD |
11 |
PPS_OUT+ |
12 |
IO_IN |
|
13 |
PPS_IN+ |
14 |
GGND1 |
15 |
GPS_CFG_TXD |
|
16 |
BY_COMM2_TX- |
17 |
BY_COMM2_RX+ |
18 |
GGND1 |
|
19 |
LCJ_B |
20 |
LCJ_A |
21 |
CAN2H |
|
22 |
CAN1H |
23 |
ETH_TXD_P |
24 |
ETH_RXD_P |
|
25 |
USB_DM |
26 |
USB_GND |
27 |
VIN |
|
28 |
VIN |
29 |
GGND1 |
30 |
INS_RS422_TX- |
|
31 |
JK_COMM1_TX- |
32 |
INS_RS422_RX+ |
33 |
JK_COMM1_RX+ |
|
34 |
GGND1 |
35 |
IMU_RS232_RXD |
36 |
INS_RS232_RXD |
|
37 |
PPS_OUT- |
38 |
PPS_IN- |
39 |
GGND1 |
|
40 |
GPS_CFG_RXD |
41 |
BY_COMM2_TX+ |
42 |
BY_COMM2_RX- |
|
43 |
GGND1 |
44 |
LCJ_G5V |
45 |
LCJ_GGND |
|
46 |
CAN2L |
47 |
CAN1L |
48 |
GGND2 |
|
49 |
ETH_TXD_N |
50 |
ETH_RXD_N |
51 |
USB_DP |
Main Features
Domestic core components, high performance, modular, low weight
Supports full GNSS frequency points, high positioning and orientation accuracy in complex environments
Rich interfaces and isolation measures
Steady-state power consumption of 18W
Full temperature calibration compensation from -45°C to +65°C
Combined navigation products support automatic north seeking, with accuracy better than 1 mil°
Built-in adaptive navigation algorithm
Application
Medium-range unmanned aerial vehicle
Vehicle positioning and orientation
Radar/infrared antenna stabilization platform
Port measurement system
Motion communication
UAV/vehicle/ship/boat attitude reference
Attitude control
Stabilization and stabilization equipment
Tunnel boring machine/automatic coal mining
Fig. 1 Dimensions of the external structure
