Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-FSI400
Document:

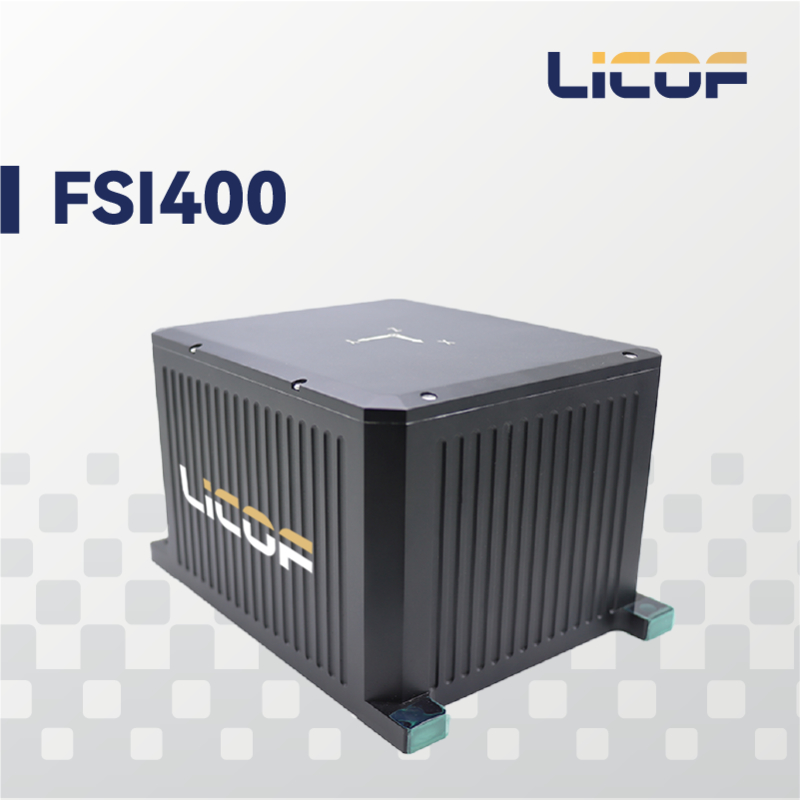

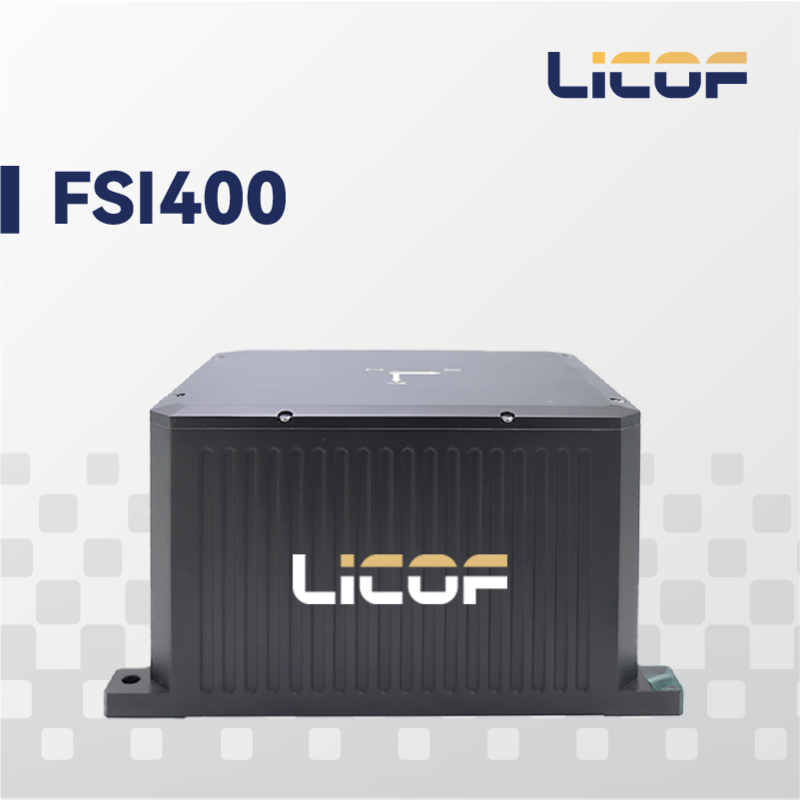

FSI400 is a highly reliable, cost-effective fiber-optic inertial/satellite integrated navigation system, widely applicable in fields such as high-precision vehicle-mounted platforms and long-endurance UAVs, as well as navigation, control, and measurement.
The system uses closed-loop fiber optic gyroscopes (FOG) and high-precision accelerometers, combined with a professional GNSS board, to achieve real-time navigation output. The system output is compatible with mainstream post-processing software to obtain higher-precision navigation results and serve as a benchmark for research platforms.
|
Fiber Optic Gyroscope |
|
|
Range (°/s) |
±300 |
|
Full-temperature Bias (°/h,, 3σ) |
≤0.01 |
|
Bias Stability (°/h, 10s smoothing) |
≤0.01 |
|
Bias Instability (°/h, allan) |
≤0.001 |
|
MEMS Accelerometer |
|
|
Range (g) |
±20 |
|
Full-temperature Bias (mg,3σ) |
≤0.1 |
|
Bias Stability (μg,10ssmoothed) |
≤10 |
|
Bias Instability (μg, allan, typ) |
≤1 |
|
Navigation Accuracy |
|
|
Self-align North-seeking Accuracy (°, 1σ) |
≤0.06secL (1mil) |
|
Pure Inertial Accuracy (1σ) |
≤1 nautical mile/1 hour |
|
Electrical/Mechanical Interface |
|
|
Power Supply (V) |
18~36(ripple ≤100mV) |
|

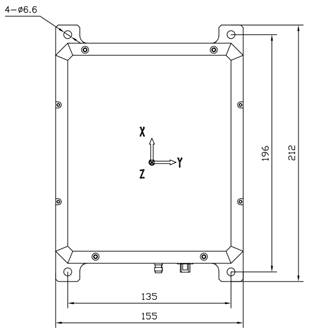

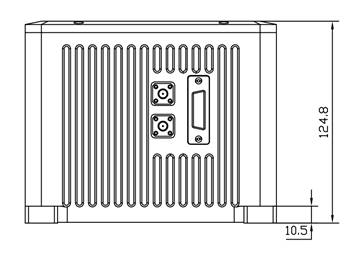

Dimensions (mm×mm×mm) |
212 × 155 × 125 |
|
Weight (g) |
≤5000 |
