Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-MSI100
Document:

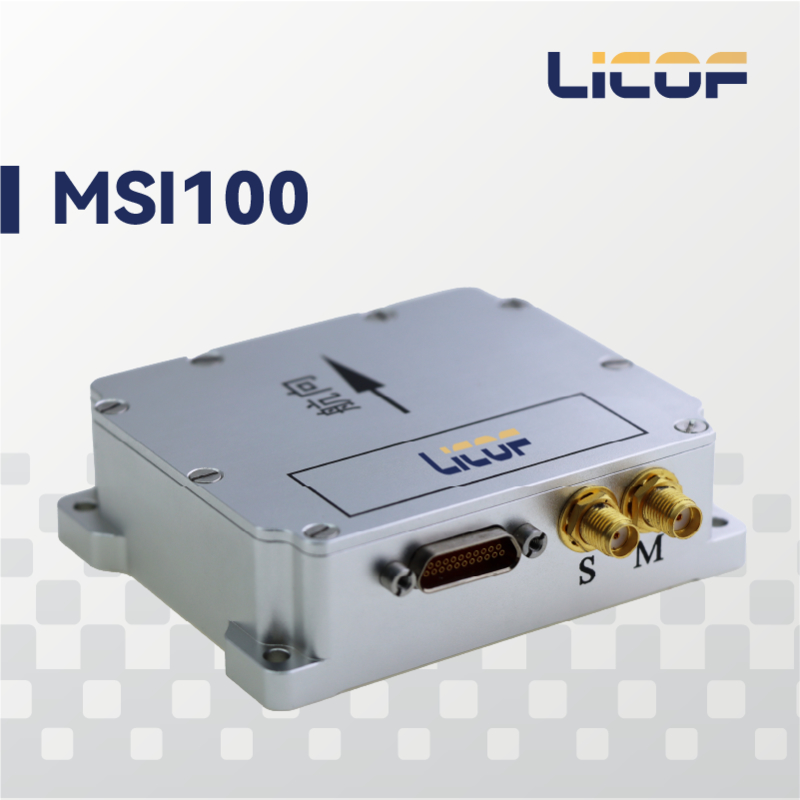

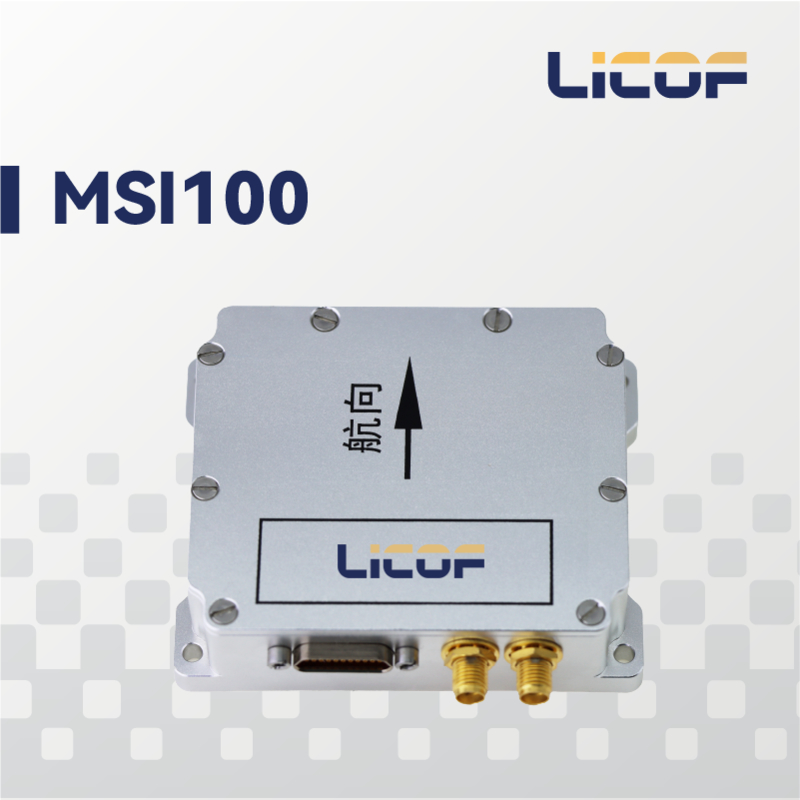

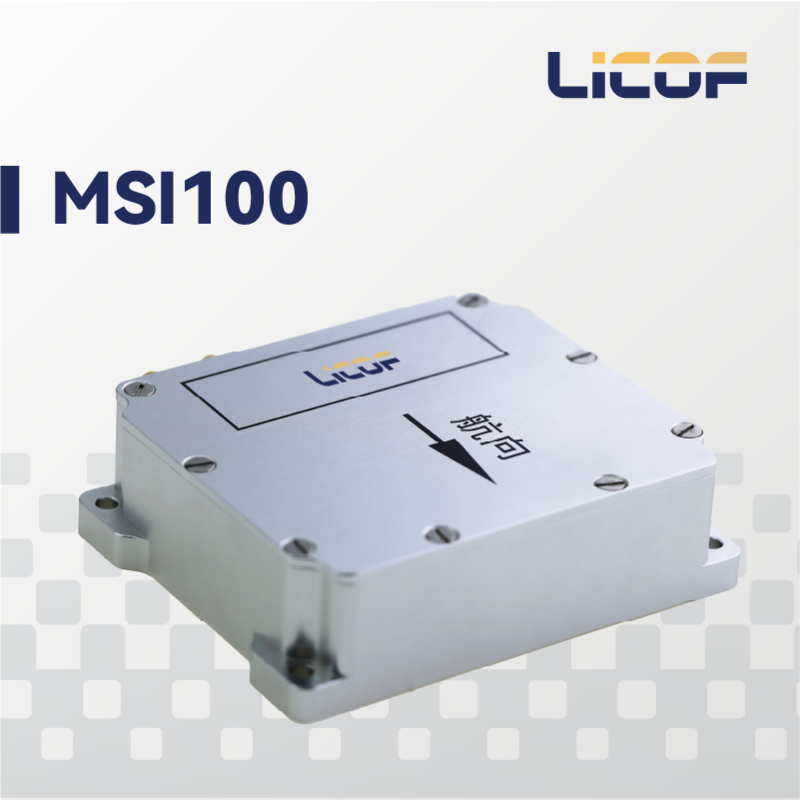

MSI100 is a highly reliable, cost-effective MEMS GNSS/INS system widely applied in navigation, control and measurement fields for vehicles, vessels and UAVs. It supports multiple configurable modes and features a high-precision gyroscope specifically on the Z-axis, maintaining accurate heading measurement over long durations.
Performance Parameters
|
MEMS Gyroscope |
|
|
Range (°/s)° |
500 |
|
Full-temperature Bias (°/h,3σ) |
≤360 (X, Y), ≤60 (Z) |
|
Bias Stability (°/h, 10s avg.) |
≤10 (XY), ≤5 (Z) |
|
Bias Instability (°/h, allan) |
≤2 (XY), ≤0.5 (Z) |
|
MEMS Accelerometer |
|
|
Range (g) |
±16 |
|
Zero Offset (mg,3σ) |
≤5 |
|
≤100 |
|
|
Integrated Navigation Accuracy |
|
|
Combined Heading (°, 1σ, Real-time) |
0.15 (1m Baseline Dual-Antenna) 0.5 (Single Antenna, Dynamic) |
|
Combined Horizontal Attitude (°, 1σ, real-time) |
0.05° (dual antenna), 0.1° (single antenna) |
|
Pure Inertial Navigation Accuracy |
|
|
Horizontal Attitude (°, 1σ, real-time) |
0.05° (static), 0.5° (dynamic) |
|
Heading (°, 1σ, real-time) |
0.5° (dynamic) |
|
Electrical/Mechanical Interface |
|
|
Power (V) |
9~36 (Ripple ≤100mV) |
|

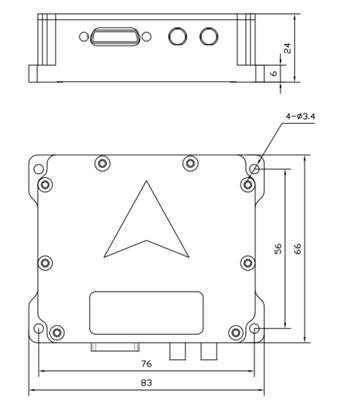

Dimensions (mm×mm×mm) |
83*66*24 |
|
Weight (g) |
160±20 (Body) |
