Document:

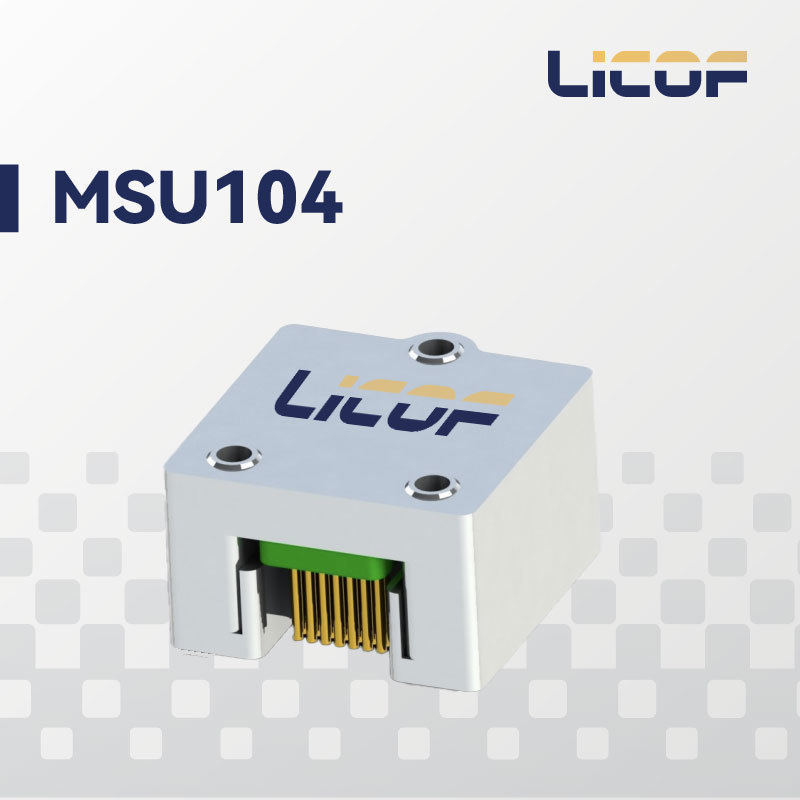

The LKF-MSU104 MEMS Inertial Measurement Unit is a highly reliable, cost-effective six-axis MEMS IMU designed for a wide range of applications including navigation, control, and measurement in vehicles, ships, and unmanned aerial vehicles.
The MSU104 series IMUs integrate high-performance MEMS gyroscopes and MEMS accelerometers within an independent structure. The selected gyroscopes and accelerometers represent the leading edge of MEMS-based inertial device technology. The system compensates for angular motion of the three-axis MEMS gyroscope's sensitive carrier and linear acceleration of the three-axis MEMS accelerometer's sensitive carrier for zero offset, scale factor, non-orthogonality error, and acceleration-related terms across the entire temperature range, ensuring high measurement accuracy over extended periods.
The MSU104 series of inertial measurement modules can be customized with different hardware and software configurations to meet specific user requirements.
| Parameters | Technical Specification |
|---|---|
| Gyroscope | |
| Range (°/s) | ±400 |
| Full-temperature zero bias (°/h, 3σ) | ≤80 |
| Bias stability (°/h, 10s smoothing) | ≤5 |
| Bias instability (°/h, Allan, typical) | ≤1 |
| Bias repeatability (°/h) | ≤5 |
| Angular random walk (°/√h) | ≤0.3 |
| Scale factor nonlinearity (ppm) | ≤150 |
| Cross-coupling (rad) | ≤0.001 |
| Bandwidth (Hz) | ≥200Hz |
| Accelerometer | |
| Range (g) | ±10 |
| Full-temperature zero bias (mg, 3σ) | ≤5 |
| Bias stability (μg, 10s smoothing) | ≤300 |
| Bias instability (μg, Allan, typical) | ≤30 |
| Bias repeatability (μg) | ≤50 |
| Velocity random walk (m/s/√h) | ≤0.03 |
| Scale factor nonlinearity (ppm, ±1g) | ≤200 |
| Cross-coupling (rad) | ≤0.001 |
| Bandwidth (Hz) | ≥200Hz |
| Physical Characteristics | |
| Power supply (V) | 3.3V |
| Steady-state power (W) | ≤1 |
| Start-up time (s) | ≤2 |
| Communication interface | One SPI, one UART |
| Update rate (Hz, max) | 1000 |
| Dimensions (mm * mm * mm) | 22.4*22.3*13.7 |
| Weight (g) | 12±2 |
| Operating Environment | |
| Operating temperature (°C) | -40~80 |
| Storage temperature (°C) | -55~85 |
| Vibration (g, RMS) | 20~2000HZ,6.06 |
| Shock (g) | 1000/1ms |
| No. | Definition | Type | Note |
|---|---|---|---|
| 1 | DR | Output | Data Ready Indicator |
| 2 | SYNC | Input/Output | External Synchronous Input and Output |
| 3 | SPI1_SCK | Input/Output | SPI Serial Clock |
| 4 | SPI1_MISO | Output | SPI Data Output. The DOUT pin is clocked on the falling edge of SCLK |
| 5 | SPI1_MISI | Input | SPI Data Input. The DIN pin is clocked on the rising edge of SCLK |
| 6 | SPI_SS0 | Input | SPI Chip Select |
| 7 | UART_RX | Input | UART Input Port |
| 8 | NRST | Input | Reset |
| 9 | WM | Output | Watermark interrupt signal for tracking the fill level of a first-in-first-out (FIFO) queue |
| 10 | UART_TX | Output | UART output signal |
| 11 | VDD | Power Positive | Power supply positive |
| 12 | SWCLK | Input | SWD clock signal |
| 13 | GND | Power Negative | Power supply negative |
| 14 | SWD | Output/Output | SWD bidirectional data signal |
