Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-MSU102

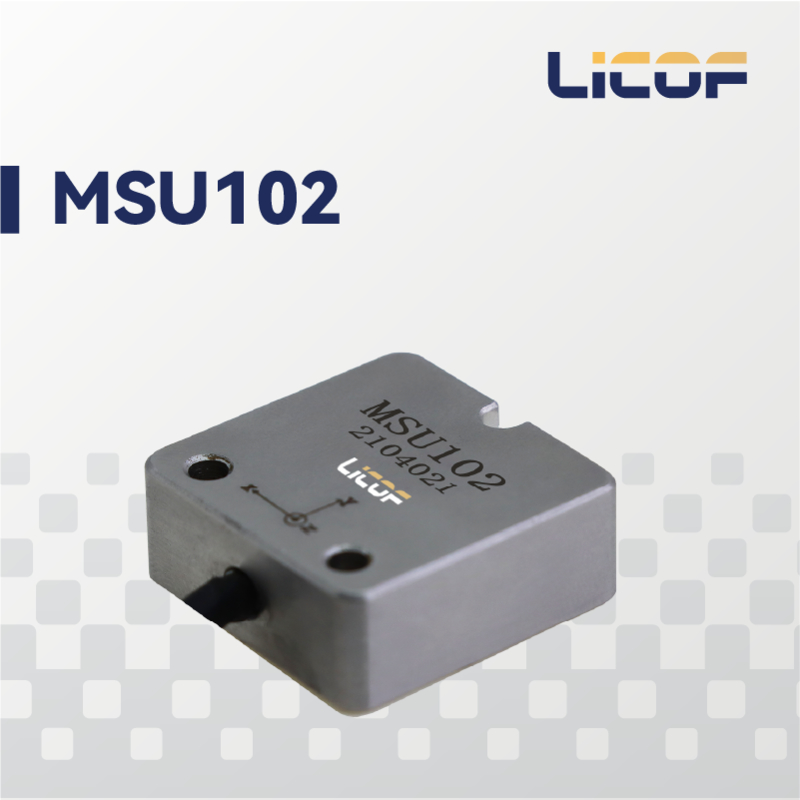

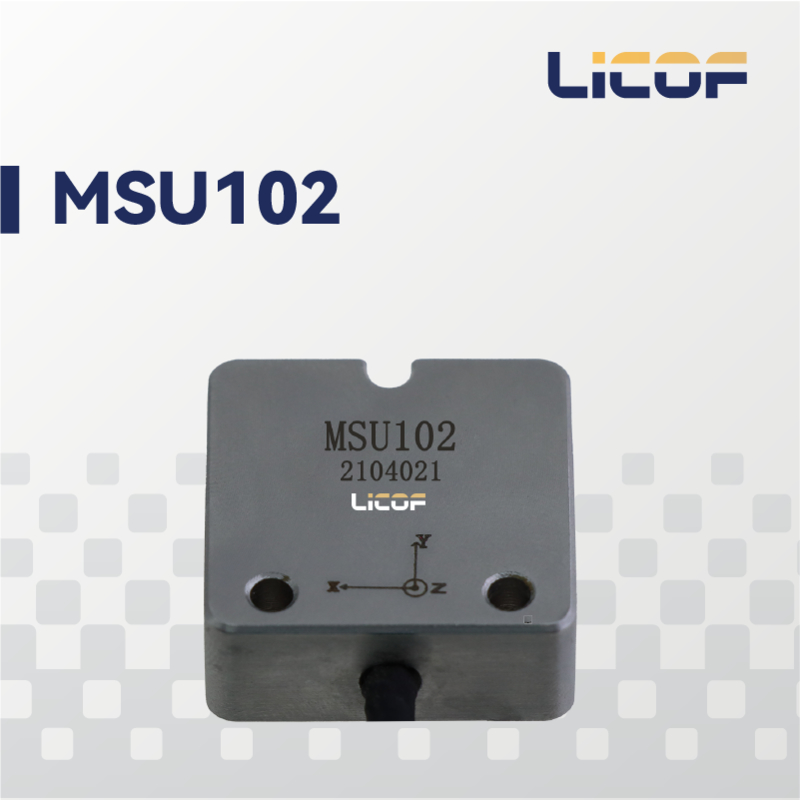

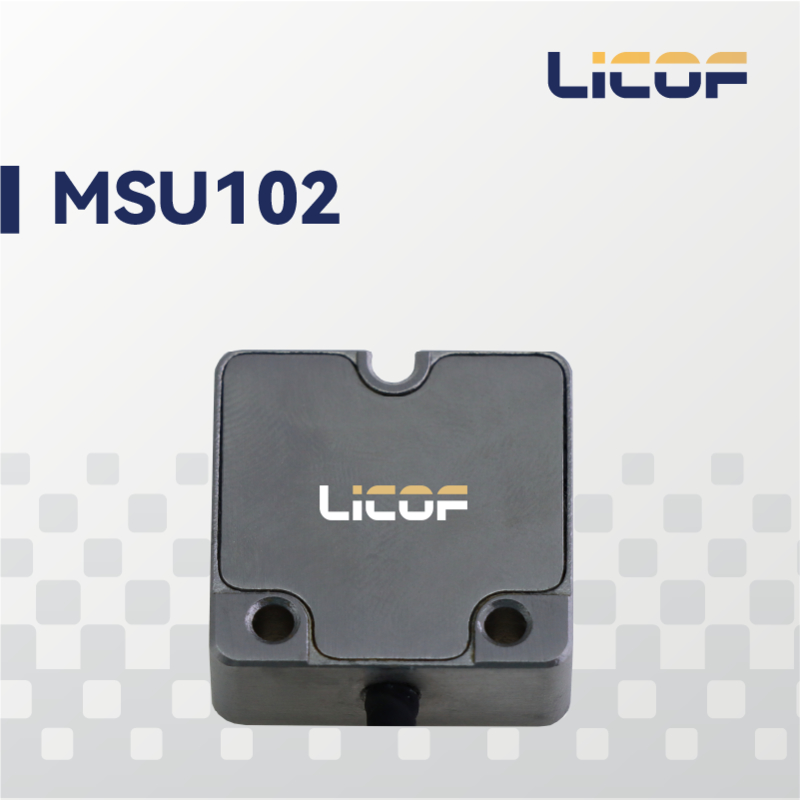

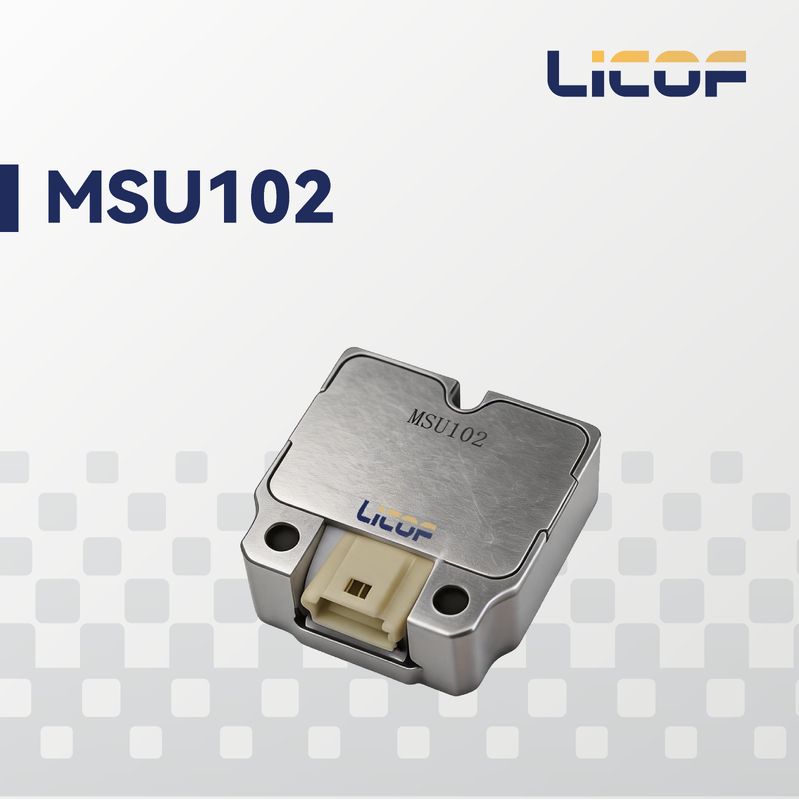

The LKF-MSU102 MEMS Inertial Measurement Unit is a compact, high-precision, high-reliability, and cost-effective three-axis MEMS inertial module capable of measuring the three-dimensional angular velocity and acceleration of a moving carrier. The module performs full-temperature compensation for parameters including bias, scale factor, non-orthogonality, and acceleration-related errors, ensuring long-term measurement accuracy.
The LKF-MSU102 MEMS inertial unit integrates high-performance MEMS gyroscopes and MEMS accelerometers within an independent structure. The gyroscopes and accelerometers used in this unit represent the cutting edge of MEMS inertial device technology. The tri-axis MEMS gyroscopes are sensitive to angular motion of the carrier, while the tri-axis MEMS accelerometers capture linear acceleration. Internal compensation is applied across the full temperature range for bias, scale factor, non-orthogonality, and acceleration-related terms, ensuring sustained high accuracy. Additionally, the unit features a sealed design to maintain precise measurements of angular and linear motion even under harsh environmental conditions, offering users a cost-effective and highly reliable solution.
Table 1 Performance Parameters Of LKF-MSU102
|
MEMS Gyroscope |
Note |
|
|
Range |
-500°/s~+500°/s |
|
|
Bias over full temperature range |
≤0.15°/s |
|
|
Bias stability |
≤15°/h |
10s smoothing |
|
Bias instability |
≤5°/h |
Allan |
|
Bias repeatability |
≤15°/h |
|
|
Angular Random Walk |
≤0.5°√h |
|
|
Scale factor nonlinearity |
≤100ppm |
|
|
Adjustable bandwidth |
≥100Hz |
|
|
MEMS Accelerometer |
|
|
|
Range |
-20g~+20g |
|
|
Bias |
≤5mg |
|
|
Bias stability |
≤0.2mg |
10s smoothing |
|
Bias instability |
≤0.05mg |
Allan |
|
Bias repeatability |
≤0.2mg |
|
|
Velocity Random Walk |
≤0.05m/s/√h |
|
|
Bias instability(Allan) |
≤0.05mg |
|
|
Scale factor nonlinearity ( ±1g) |
≤300ppm |
|
|
Scale factor nonlinearity ( ±1g) |
≤200ppm |
|
|
Adjustable bandwidth |
≥100Hz |
|
|
System |
|
|
|
Power Supply |
5V±0.2V |
|
|
Operating Temperature |
-40℃~+80℃ |
|
|
Shock |
≥2000g |
|
|
Vibration |
6.06grms |
20~2000Hz |
|
Size |
22.4mm×22.5mm×9mm |
|
|
Weight |
≤20g |
|
|
Adjustable Data Update Rate |
1000Hz |
|
|
Interface Type |
UART |
LVTTL level |
Table 2 MSU102 MEMS IMU Pin Definition
|
Wire Harness |
No. |
Color |
Definition |
Connector |
No. |
|
Wire Harness (Diameter0.07 mm) |
1 |
Red |
+5V |
DB9_M1 |
6 |
|
2 |
Black |
GND |
5 |
||
|
3 |
Orange |
UART_TX |
1 |
||
|
4 |
Yellow |
UART_RX |
2 |
||
|
5 |
Blue |
PPS |
3 |
||
|
6 |
White |
TOV |
4 |
Full temperature compensation
Excellent temperature performance
Data update rate up to 1000 Hz
Configurable baud rate, up to 921.6 kbps
Powered by DC 5V
Supports software online upgrade
Flight control
Autonomous driving
Attitude reference
Mobile mapping
Fig. 1 Outline Structure Dimension Diagram
