Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-MSU203

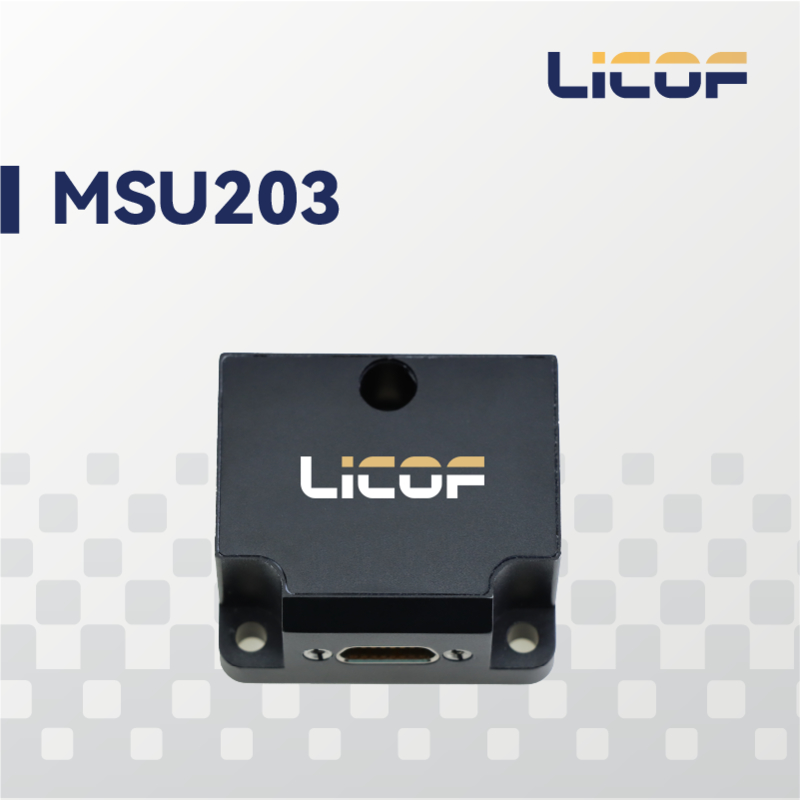

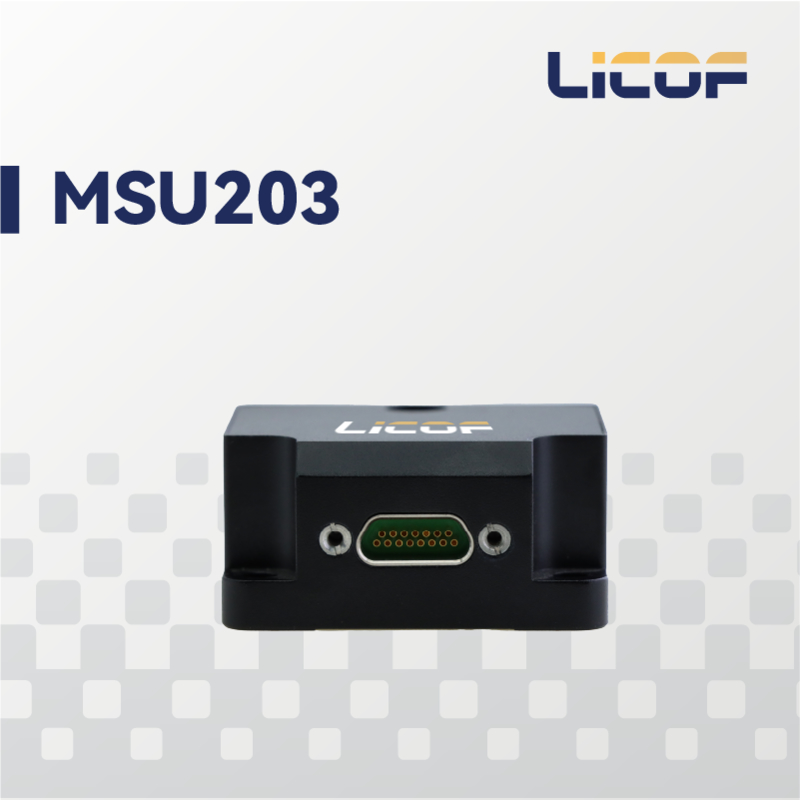

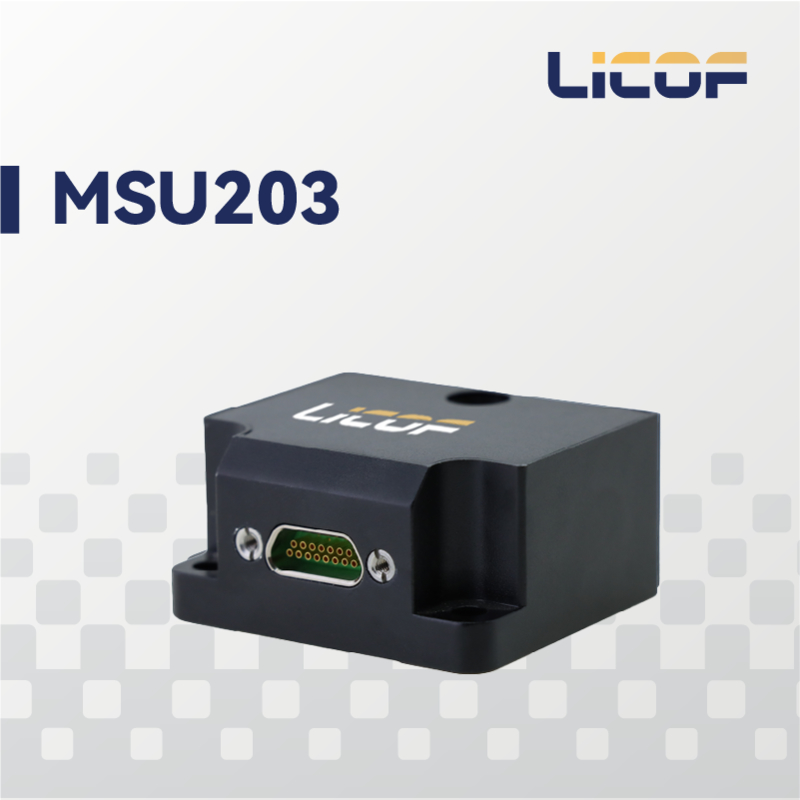

The LKF-MSU203 MEMS Inertial Measurement Unit (IMU) is a highly reliable and cost-effective six-axis MEMS inertial measurement module, widely applicable in navigation, control, and measurement fields such as vehicles, ships, and UAVs. The LKF-MG209A series integrates high-performance MEMS gyroscopes and accelerometers within an independent structure, with selected components representing the leading edge of MEMS-based inertial technology. All electronic components are 100% domestically sourced.
The triaxial MEMS gyroscopes detect angular motion of the carrier, while the triaxial MEMS accelerometers measure linear acceleration. The system incorporates comprehensive temperature compensation for zero bias, scale factor, non-orthogonal errors, and acceleration-related terms, ensuring sustained high measurement accuracy over extended periods.
The LKF-MSU203 series supports customizable hardware and software configurations to meet diverse user requirements. For specific navigation applications, the gyroscopes can be upgraded to high-precision MEMS models, maximizing adaptability to varying needs.
High quality and reliability
The company can effectively improve product quality and reduce system costs by comprehensively controlling upstream and downstream processes and technologies. At the same time, the company implements ISO9001 and GJB quality systems, and adopts strict processes to ensure the reliability and consistency of product performance.
Table1 Performance parameters of LKF-MSU203
|
Gyroscope |
|
|
Range(°/s) |
±500 |
|
Bias(°/h,full temperature) |
≤15 |
|
Bias Stability(°/h,10s smoothing) |
≤1.8 |
|
Bias Instability(°/h,allan) |
≤0.1 |
|
Bias Repeatability(°/h) |
≤1 |
|
Non-orthogonality |
≤0.001 |
|
Acceleration Sensitivity(°/s/g) |
≤0.001 |
|
Angular Random Walk(°/√h) |
≤0.1 |
|
Scale Factor Nonlinearity(ppm) |
≤100 |
|
Vibration-Induced Bias(°/h) |
≤30 |
|
In-run Noise(°/s) |
≤0.2 |
|
Bandwidth(Hz) |
200 |
|
Accelerometer |
|
|
Range(g) |
±20 |
|
Bias (mg,full temperature) |
≤1 |
|
Bias Stability(mg,10s smoothing) |
≤0.05 |
|
Bias Repeatability(mg) |
≤0.05 |
|
Non-orthogonality |
≤0.001 |
|
Scale Factor Nonlinearity(ppm,1g) |
≤300 |
|
Static Noise(mg) |
≤5 |
|
Bandwidth(Hz) |
200 |
|
Electrical/Mechanical Interface |
|
|
Power Supply (V) |
5~12 |
|
Power Consumption (W) |
1.5 |
|
Startup Time (s) |
2 |
|
Communication Interface |
1 x RS-422 channel, 2 x RS-232 channels, |
|
Update Rate (Hz) |
200Hz (customizable) |
|
Dimensions (mm×mm×mm) |
44.8×38.6×21.5 |
|
Weight (g) |
55±5 |
|
Operating Environment |
|
|
Operating Temperature (°C) |
-45～80 |
|
Storage Temperature (°C) |
-55～85 |
|
Vibration (g, RMS) |
6.06 |
|
Shock (g) |
1000g/1ms |
|
Reliability |
|
|
MTBF(h) |
100000 |
Table 2 Connector Pin Definitions
|
Pin |
Definition |
Notes |
|
8 |
POWER_IN |
5~12V Power Supply |
|
15 |
GND |
|
|
6 |
RS232_TXD1 |
RS232 Interface |
|
5 |
RS232_RXD1 |
|
|
3 |
GND |
|
|
10 |
RS422 R+ |
RS422 Interface |
|
2 |
RS422 R- |
|
|
9 |
RS422 T+ |
|
|
1 |
RS422 T- |
|
|
14 |
RS232_TXD2 |
RS232 Interface, GNSS can be connected |
|
7 |
RS232_RXD2 |
|
|
13 |
GND |
|
|
11 |
PPS_IN |
General IO,3.3v level, rising edge is valid |
|
4 |
TOV |
|
|
12 |
GND |
Main Features
100% domestically sourced components
High performance, compact size, lightweight, low power consumption
Full temperature calibration compensation (-45°C to +80°C)
High-speed sampling
Harsh mechanical environment resistance
Supports firmware online updates
Applications
Radar/infrared antenna stabilization platforms
UAV attitude reference/flight path control
Missile flight control
Vehicle/ship attitude measurement
Port measurement systems
Satellite communication on-the-move
Drilling and extraction systems
Mobile mapping systems
Automated driving test systems
Individual soldier navigation systems
Figure 1 Dimension
