Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-MSU300
Document:
Video

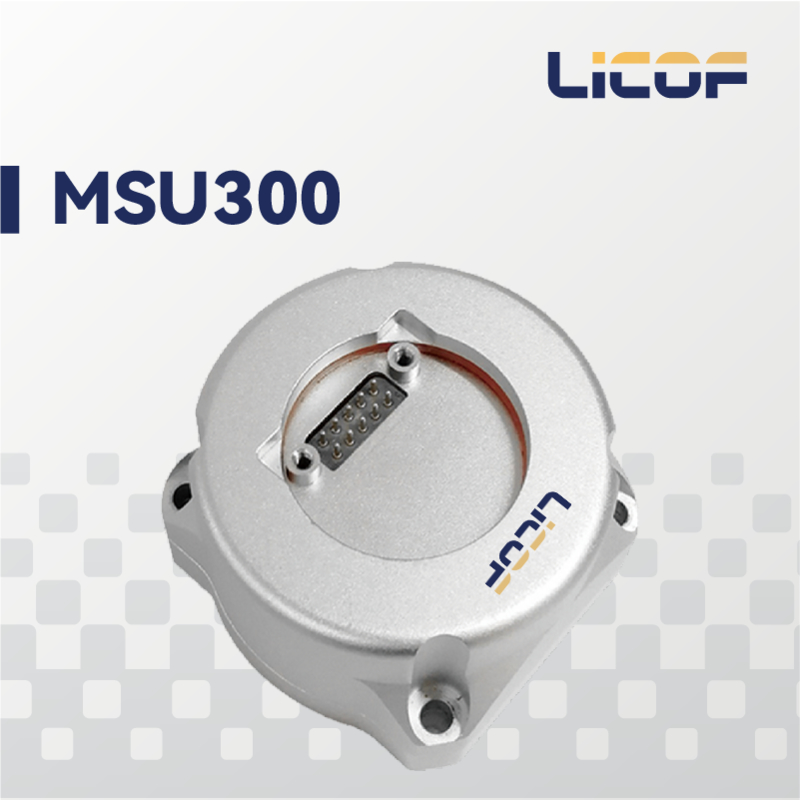

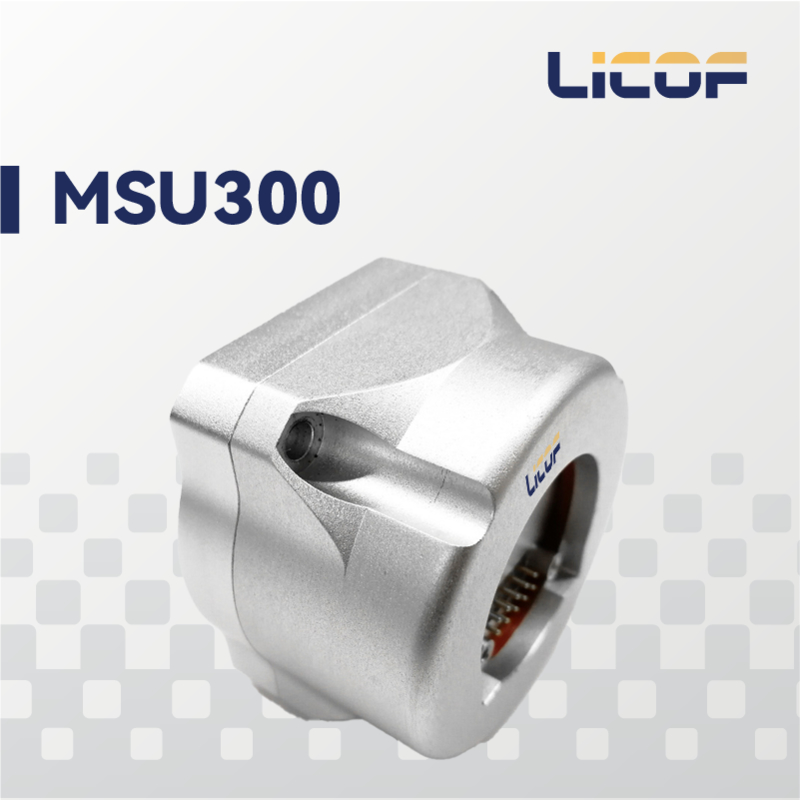

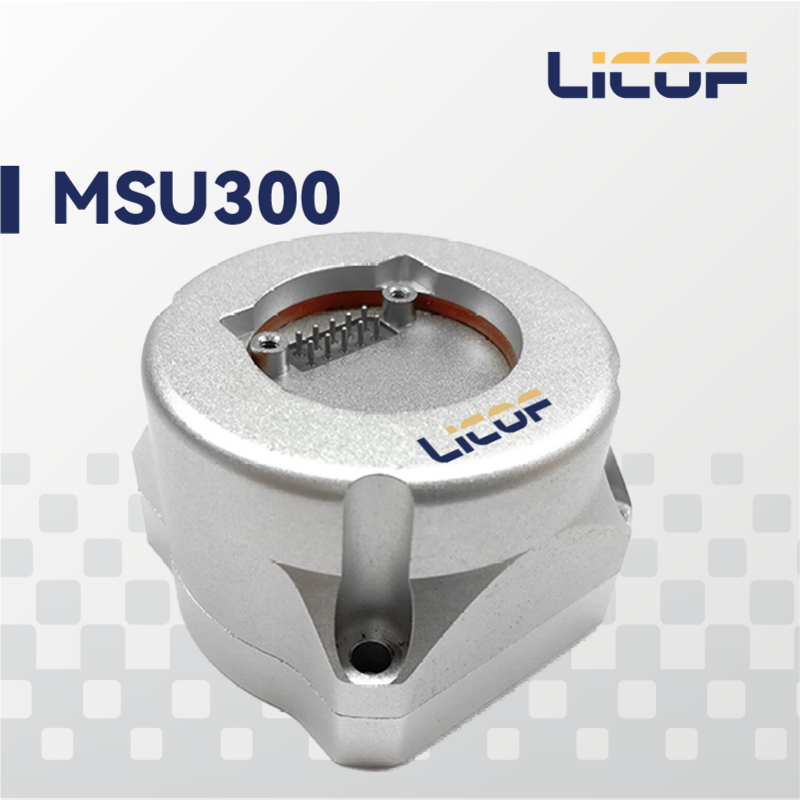

The LKF-MSU300 is a highly reliable and cost-effective six-axis MEMS inertial sensor, widely applicable in navigation, control, and measurement fields including inertial navigation and attitude stabilization.
This IMU employs enhanced structural design and structural adhesive sealing to ensure accurate measurement of angular and linear motion parameters even in harsh environments, providing users with a highly reliable solution. It can be configured with different hardware and software settings to meet diverse user requirements.
| MEMS Gyroscope | |
|---|---|
| Range (°/s) | ±400 |
| Bias (°/h) | ≤2 |
| Bias Stability (°/h, 10s smoothing) | ≤0.3 |
| Bias Instability (°/h, Allan) | ≤0.03 |
| Angle Random Walk (°/√h) | ≤0.3 |
| Bias Repeatability (°/h) | ≤0.02 |
| Scale Factor Nonlinearity (ppm) | ≤100 |
| Cross-Axis Coupling (rad) | ≤0.001 |
| Bandwidth (Hz) | ≥200Hz |
| MEMS Accelerometer | |
| Range (g) | ±30 |
| Bias (mg) | ≤2 |
| Bias Stability (μg) | ≤50 |
| Bias Instability (μg, Allan) | ≤30 |
| Velocity Random Walk (m/s/√h) | ≤50 |
| Bias Repeatability (μg) | ≤0.03 |
| Scale Factor Nonlinearity (ppm) | ≤100 |
| Bandwidth (Hz) | ≤0.001 |
| Cross-Axis Coupling (rad) | ≥200Hz |
| Electrical/Mechanical Interface | |
| Power Supply (V) | 5±0.2V |
| Power (W) | ≤2 |
| Startup Time (s) | ≤2 |
| Communication Interface | 2-channel RS-422 |
| Update Rate (Hz) | 200 (customizable, maximum 1000) |
| Dimensions (mm x mm x mm) | 56*56*38.5 |
| Weight (g) | 236±5g |
| Operating Environment | |
| Operating Temperature (°C) | -45～80 |
| Storage Temperature (°C) | -55～85 |
| Vibration (g, Rms) | 13 |
| Shock (g) | 1000g/1ms (energized) |
