Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-OE46M/30M

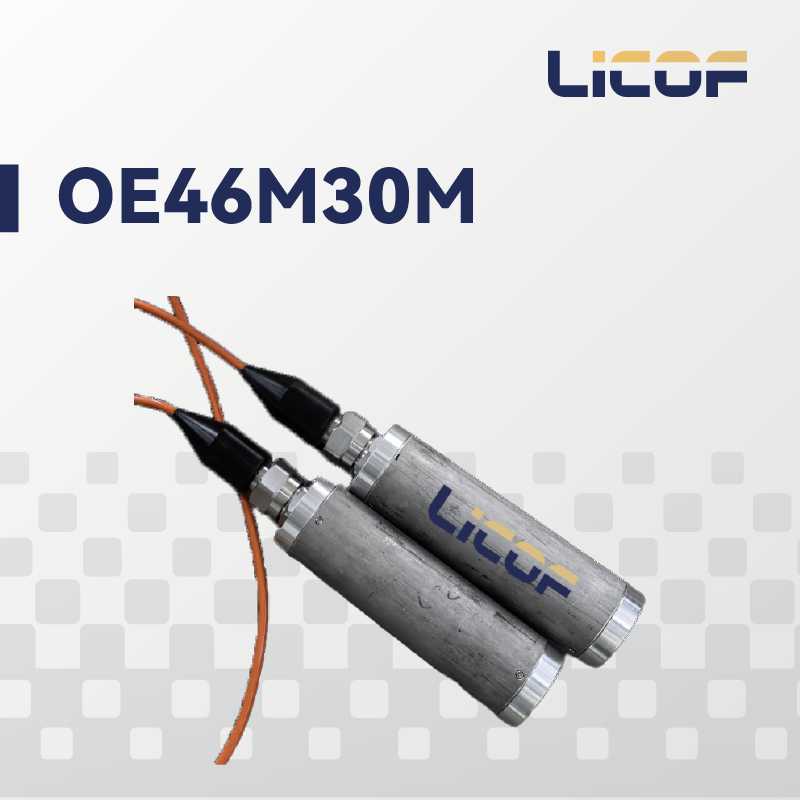

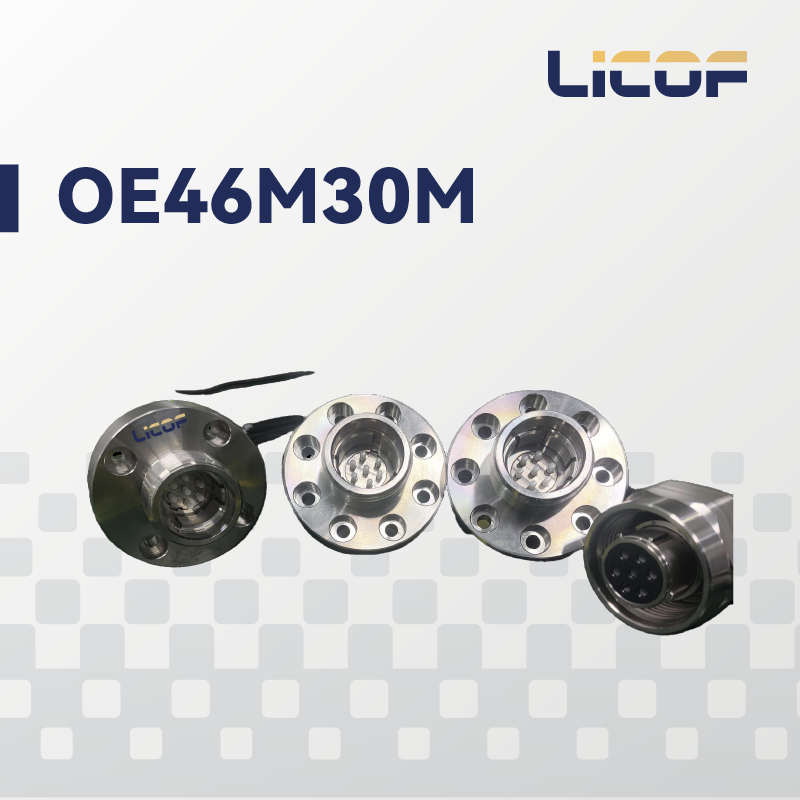

Main Performance
|
Number of Contact Pins |
2~32 cores |
|
Contact Resistance |
<10 mQ |
|
Insulation Resistance |
>2000MΩ at normal conditions, >1000MΩ after environmental testing |
|
Dielectric Voltage |
≤3000V DC, 1 min |
|
Single-Core Current Rating |
≤40A |
|
Insertion Loss |
1.2dB standard / 0.6dB low loss (1310nm) |
|
1.0dB standard / 0.5dB low loss (1550nm) |
|
|
Mechanical Life |
>1000 cycles |
|
Factory Test Pressure |
Standard lateral 30MPa, customizable up to 60MPa lateral pressure, customizable with longitudinal waterproofing for receptacles |
|
Operating Temperature |
-45℃~90℃ |
|
Connector housing |
Standard stainless steel 316L, customizable titanium alloy TC4 |
|
Optical contact |
Zirconia ceramic pins |
|
Electrical contact |
Gold-plated brass |
|
Sealing end cap |
Stainless steel 316L |
|
Cable |
Polyurethane cable or rubber-sheathed cable |
Connector Arrangement
|
Number of cores: 2 optical/electrical Single-core current rating: 65A Operating voltage: 1000V DC/AC rms Dielectric voltage: 2500V DC Insertion loss: ≤1.0dB@1550nm |
Number of cores: 4 optical/electrical Single-core current rating: 40A Operating voltage: 500V DC/AC rms Dielectric voltage: 2500V DC Insertion loss: ≤1.0dB@1550nm |
Number of cores: 7 optical/electrical Single-core current rating: 20A Operating voltage: 500V DC/AC rms Dielectric voltage: 1000V DC Insertion loss: ≤1.0dB@1550nm |
|||
|
Number of cores: 12 optical/electrical Single-core current rating: 13A Operating voltage: 500V DC/AC rms Dielectric voltage: 1000V DC Insertion loss: ≤1.0dB@1550nm |
Number of cores: 16 optical/electrical Single-core current rating: 13A Operating voltage: 500V DC/AC rms Dielectric voltage: 1000V DC Insertion loss: ≤1.0dB@1550nm |
Number of cores: 32 Single-core current rating: 5A Operating voltage: 500V DC/AC rms Dielectric voltage: 1000V DC |
|||
|
Number of cores: 4 optical/electrical + 1 RF Single-core current rating: 20A Operating voltage: 500V DC/AC rms Dielectric voltage: 1000V DC Insertion loss: ≤1.0dB@1550nm |
|
|
|||
|
Note: Customization is available to support optical, electrical, and RF transmission requirements with different core counts. |
|||||
Dimensions Of The External Structure

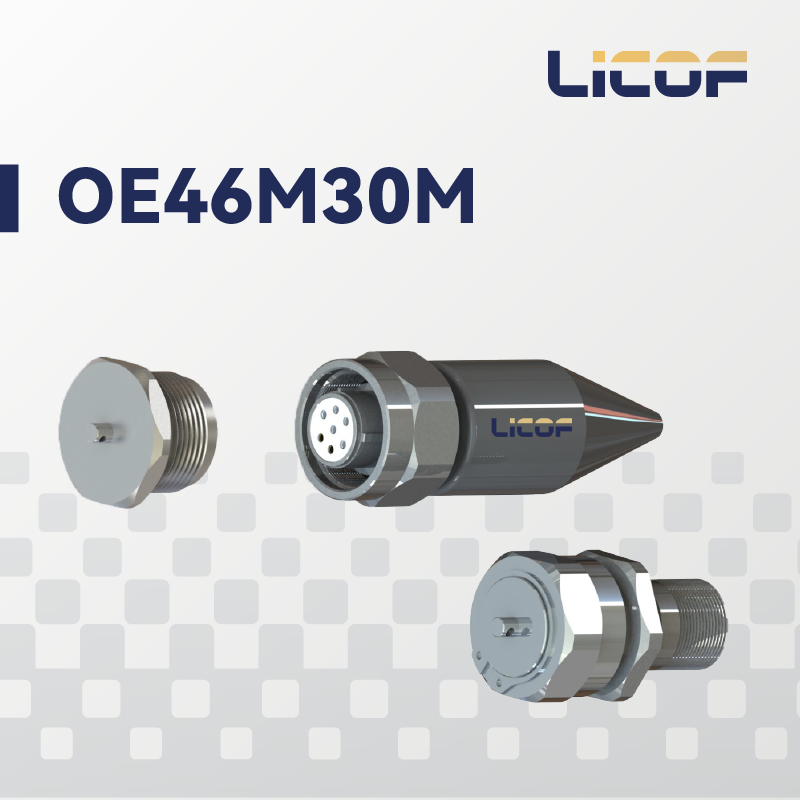

Plug shape

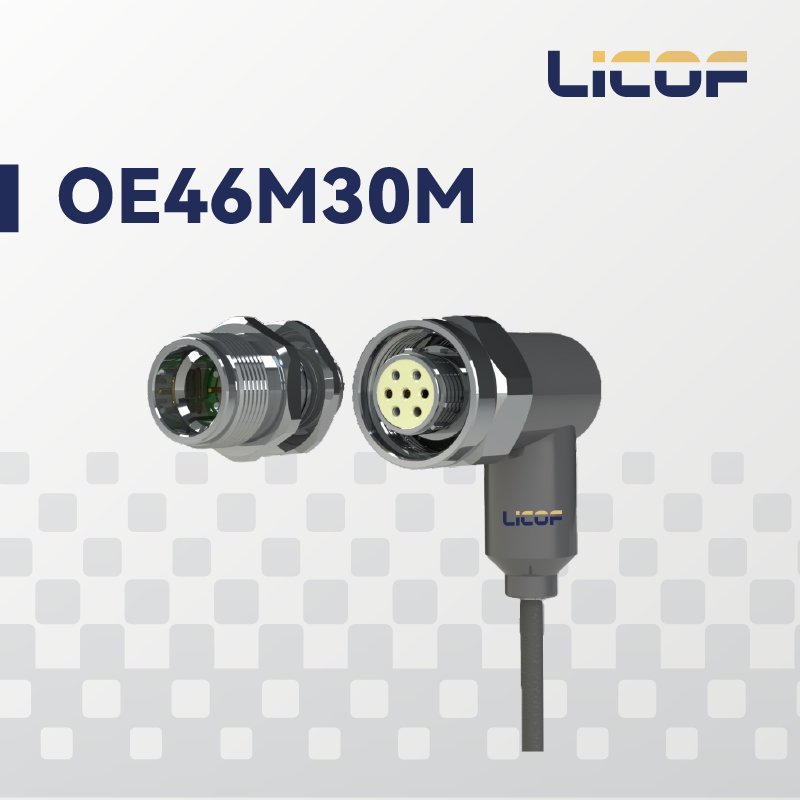

OE46M/30MTEXFY Vertical Tail Attachment Configuration
OE46MT/30MTEXFYRound Conventional Tail Attachment Form
Outlet shape
Sealing Cap Profile
