Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-FC

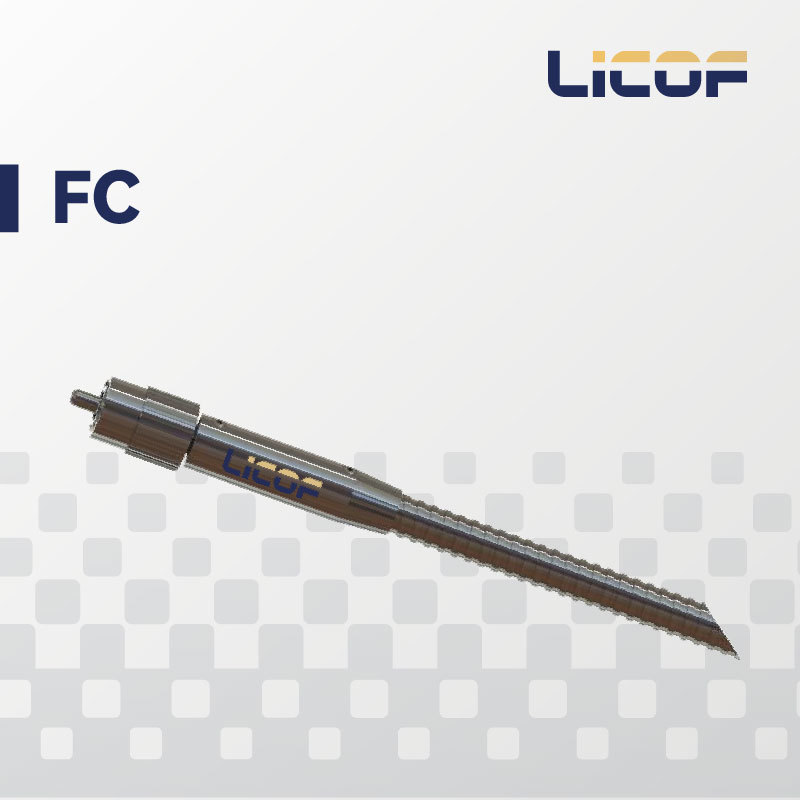

High-temperature, high-power metal fiber optic connectors utilize high-precision metal connectors and metal fiber optic ferrules with excellent heat dissipation properties. These ferrules are precision-ground into either an arc surface (UPC) or an angled surface (APC). The connectors are manufactured using processes such as high-temperature adhesive, suspended ferrules, adhesive-free fiber optics, and air gaps, resulting in excellent transmission and environmental performance. They are widely used in fields such as medical applications, industrial settings, extremely complex communication systems, and fiber lasers.
Table1 FC Main Parameters
|
Category Specifications |
Requirements |
|
End Face Requirements |
400X Compliant with IEC 61300-3-35 |
|
Maximum Power |
≥200W |
|
Operating Temperature |
-40℃ ~200℃ |
|
Fiber Optic Connector Type |
FC, D80, SMA905 optional |
|
Ferrule Type |
PC, APC, PC suspended optional |
|
Jacket |
PVC, mini armored conduit |
|
Protection Rating |
IP67 |
Main Features
Using high-temperature-resistant stainless steel metal connectors and metal sheaths, combined with high-temperature-resistant optical fibers, it can operate continuously at temperatures below 200°C.
Compatible with various energy transmission fibers with core diameters ranging from 80 to 1000 μm
Available in standard connectors such as FC, SMA905, and D80, with customization options available upon customer request
Features suspended ferrules, adhesive-free construction, and a waterproof sealing design suitable for high-power laser applications
Offers oil resistance and waterproof protection with an IP67 rating
Applications
High-power lasers
Laser welding and marking
Temperature sensing
Spectral detection
Measurement and testing instruments and equipment
