Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-J599 A8

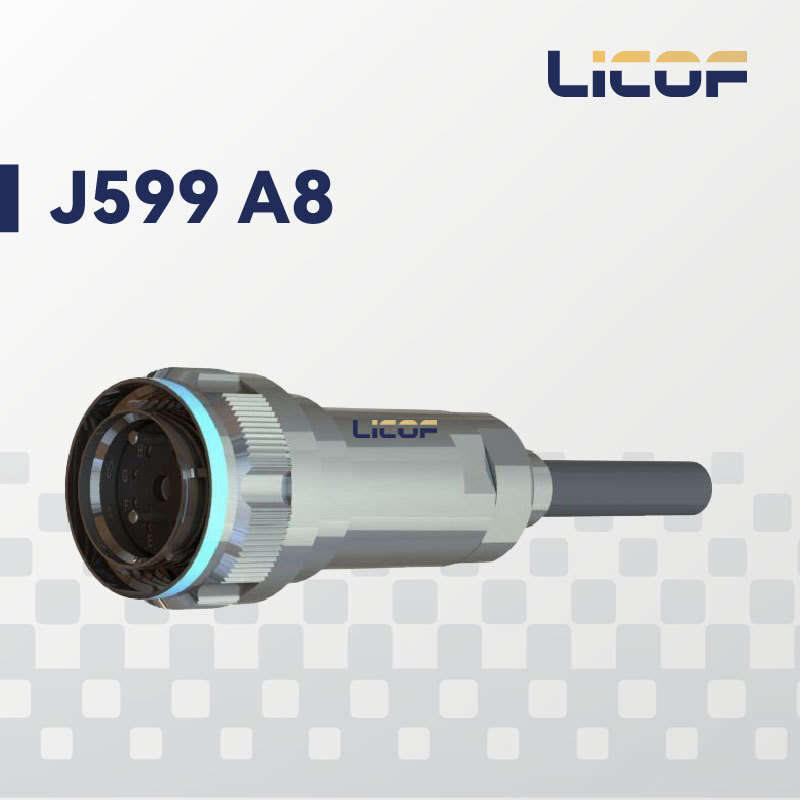

The J599 A8 series fiber optic connectors feature a three-thread quick-connect design with five-key positioning, offering blind-mate and anti-misinsertion functionality, as well as vibration resistance. The connectors are constructed from 316L stainless steel or aluminum alloy, ensuring low insertion loss and high reliability. The fiber optic components are removable, making on-site installation convenient. The product features waterproof, dustproof, and corrosion-resistant properties. Currently available specifications include: 2-core, 4-core, 6-core, and 8-core. Customization is also available upon customer request.
Table1 J599 A8 Main Parameters
|
Insertion loss |
≤0.6 dB |
|
Operating temperature |
－55°C to +85°C |
|
Vibration |
10 Hz to 2000 Hz, power spectral density 0.4 G²/Hz, root mean square acceleration value 23.1 |
|
Shock |
2940 m/s², duration 3 ms, velocity change rate 2.96 m/s |
|
Mechanical life |
500 times |
|
Tensile strength |
≥720 N (compatible with optical cables 5.0 mm or larger); ≥68 N (2 mm contact jumper) |
|
Air tightness |
(Suitable for airtight connector sockets) Gas leakage ≤1×10⁻⁹ Pa·m³/s at an internal/external pressure difference of 1 atmosphere |
|
Salt spray performance |
≥500 hours (stainless steel material), ≥200 hours (aluminum alloy with cadmium plating), ≥48 hours (aluminum alloy with nickel plating) |
Table 2 Dimensions Of The External Structure
|
Shell number |
Shell code |
A Max |
Thread |
L Max |
L1 Max |
|
11 |
B |
25.00 |
M15×1-6g |
32 |
42 |
|
13 |
C |
29.40 |
M18x1-6g |
32 |
42 |
|
15 |
D |
32.40 |
M22x1-6g |
32 |
42 |
|
17 |
E |
35.60 |
M25×1-6g |
32 |
42 |
|
19 |
F |
38.50 |
M28x1-6g |
32 |
42 |
|
21 |
G |
41.70 |
M31x1-6g |
32 |
42 |
|
23 |
H |
44.90 |
M34x1-6g |
32 |
42 |
|
25 |
J |
48.00 |
M37x1-6g |
32 |
42 |
Main Features
Interface dimensions and performance comply with GJB599A (MIL-DTL-38999) III and ARINC801 standards
Suitable for aviation, electronics, and naval systems, used for multi-channel optical communication
The housing can be made of different materials and coatings to meet various environmental requirements
Five-key positioning with blind insertion and anti-misinsertion functions
Three-threaded quick-connect design with anti-loosening mechanism
Ceramic pins and sleeves ensure precise contact alignment
Multiple tail configuration options available
Adapter connectors (optional with airtight seals) available to eliminate cable constraints
Applications
Aviation
Electronics
Weapons
Ships
Electricity
Fiber optic communication systems for harsh outdoor environments
