Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-FC

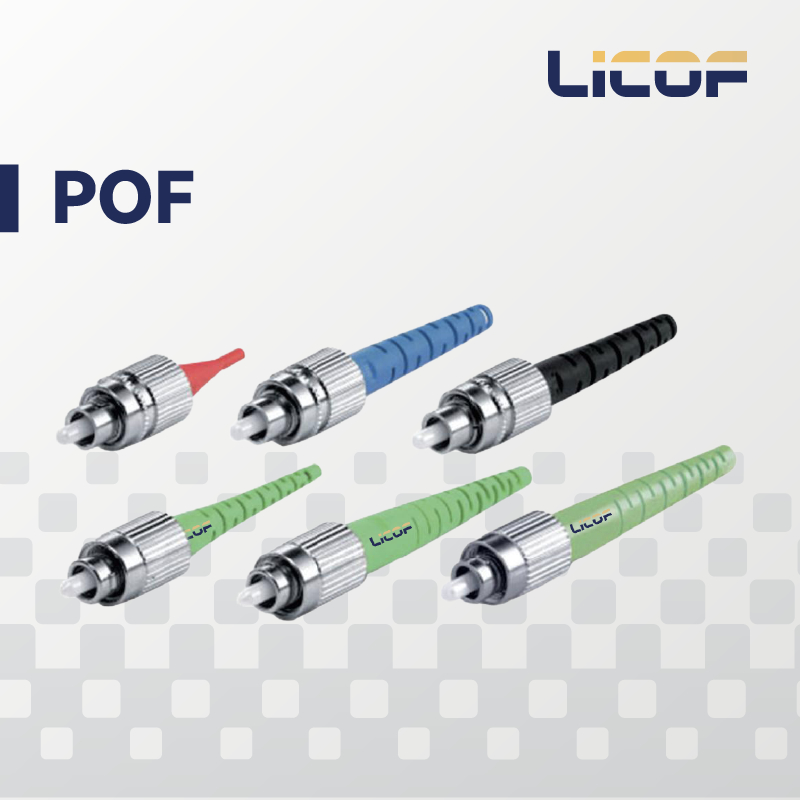

The FC fiber optic connector is a single-core connector commonly used in fiber optic communications. Its external reinforcement employs a metal sleeve with a threaded locking mechanism, making it suitable for high-vibration environments. The fiber interface uses a ceramic ferrule with a spherical (UPC) or angled (APC) end-face. FC fiber connectors are currently primarily used in data communications, telecommunications, measurement equipment, and single-mode lasers.
Table1 FC Main Parameters
|
Category |
Specification Requirements |
|
End-Face Requirements |
400X Compliant with IEC 61300-3-35 |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
≥45dB (SM, PC); ≥60dB (SM, APC) |
|
Repeatability |
≤0.2dB |
|
Ferrule Type |
PC, UPC, APC with optional floating end |
|
Covering |
0.9Hytrel, 2.0/3.0mm PVC, armored empty conduit, etc. available |
|
Operating Temperature |
-40°C to +85°C |
|
Compliance Standard |
YD_T 1272.4-2018 |
Main Features
High stability and reliability.
Low insertion loss, high return loss.
Excellent polishing standards.
End-face geometry parameters comply with GR-326Core.
Available in single-core or dual-core cables with Ф0.9, Ф2.0, or Ф3.0 diameters.
Applications
Telecommunications networks
Cable television
Gigabit Ethernet
Active or passive equipment terminals
Industrial, medical, and military applications
Dimensions Of The External Structure
