Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-ST

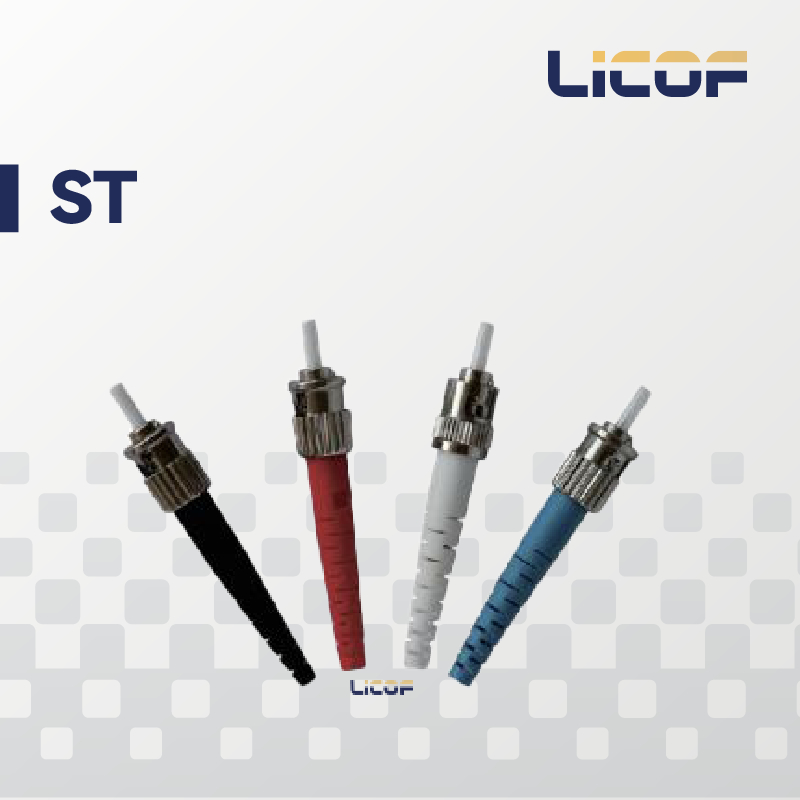

ST in ST fiber optic connectors stands for “Stab & Twist.” The housing is circular, and the locking mechanism is a snap-in type, i.e., a snap-in circular interface. The ST connector features a bayonet-style locking frame and a 2.5 mm long cylindrical ceramic (commonly) or polymer ferrule to hold the entire fiber. Installation resembles a snap-fit light bulb: insert and rotate halfway to lock into the bayonet. For 10Base-F connections, the connector is typically of the ST type.
Table1 SC Main Parameters
|
Category |
Specification Requirements |
|
End-Face Requirements |
400X Compliant with IEC 61300-3-35 |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
≥45dB (SM, PC); ≥60dB (SM, APC) |
|
Repeatability |
≤0.2dB |
|
Ferrule Type |
PC, UPC, APC with optional floating end |
|
Covering |
0.9Hytrel, 2.0/3.0mm PVC, armored empty conduit, etc. available |
|
Operating Temperature |
-40°C to +85°C |
|
Compliance Standard |
YD_T 987 |
Main Features
High stability and reliability.
Low insertion loss, high return loss.
Excellent polishing standards.
End-face geometry parameters comply with GR-326Core.
Available in single-core or dual-core cables with Ф0.9, Ф2.0, or Ф3.0 diameters.
Applications
Telecommunications networks
Cable television
Gigabit Ethernet
Active or passive equipment terminals
Industrial, medical, and military applications
Dimensions Of The External Structure
