Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-J599 MPO

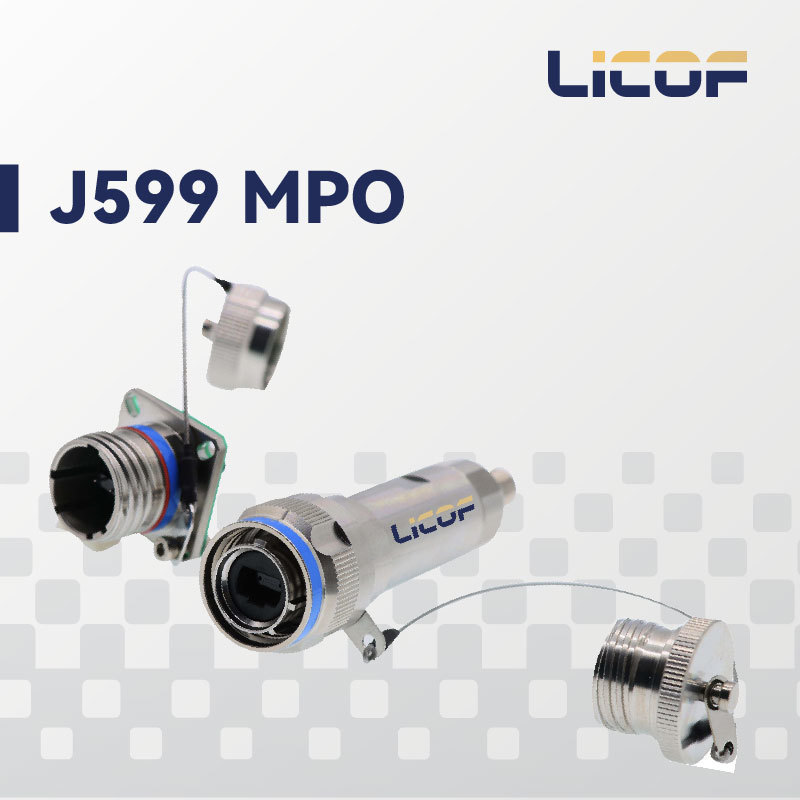

The J599 MPO fiber optic connector is based on the J599 circular fiber optic connector, utilizing a standard MPO fiber optic connector. The connector features a three-thread quick-connect design, along with a five-key positioning mechanism, offering blind-mate and anti-misinsertion capabilities, as well as vibration resistance. The connector is constructed from stainless steel 316L material, featuring high contact density and electromagnetic shielding functionality. The fiber optic components are removable, facilitating on-site installation. The connector has low insertion loss and high reliability, and is waterproof, dustproof, and corrosion-resistant. It is primarily used in marine vessel communication equipment, aircraft-mounted equipment, and harsh environments such as acidic, alkaline, hydrochloric acid, and humid conditions, as well as military communication and outdoor harsh environment communication applications. The connector is available in configurations ranging from 2 to 96 fibers.
Table1 J599 MPO Main Parameters
|
Insertion loss |
Single mode |
≤0.75 dB (low insertion loss ≤0.30 dB) |
|
Multi-mode |
≤0.6 dB (typical ≤0.2 dB) |
|
|
Return loss |
Single mode |
≥50 dB |
|
Mechanical properties |
Plug |
≤500 N (main cable) |
|
Socket |
≤30 N (branch cable) |
|
|
Operating temperature |
-40°C to 85°C |
|
|
Protection rating |
IP68 |
|
|
Optical cable diameter |
7mm |
|
Sheath material |
LZSH (or TPU) |
|
Tensile unit |
KEVLAR |
|
Fiber type |
9/125, 50/125, 62.5/125 |
|
Fiber coating |
900um tight-fitting fiber |
|
Tensile strength |
Short term: 600N Long term: 200N |
|
Operating temperature |
-40℃～85℃ |
Table 2 Dimensions Of The External Structure(See more at Figure 1)
|
Shell Number |
Shell Code |
A Max |
B Thread |
L Max |
|
13 |
C |
29.4 |
M18*1-6g |
32 |
|
15 |
D |
32.4 |
M22*1-6g |
32 |
Main Features
Compliant with GJB599A (MIL-DTL-38999) III series interface The connector uses a five-key positioning system with blind insertion, anti-misinsertion, and anti-vibration functions
Using a three-thread quick connection with an anti-loosening mechanism
Using ceramic ferrules and ceramic sleeves to achieve precise fiber alignment
Applications
Zhitong substation, remote communication base station
Military optical communication network
Communication vehicle transmission, long-distance space transmission, portable communication transmission tools for communication soldiers
Remote video conference signal transmission for practical exercises
Coal mines, oil wells, natural gas, etc.
Geological exploration communication
Broadcast television relay
Emergency fiber optic communication restoration
|
Shell Number |
Shell Code |
Connection Arrangement And Connection Code |
||||
|
13 |
C |
Connection Code |
12 |
Connection Code |
24 |
|
|
Specification |
MPO12 |
Specification |
MPO24 |
|||
|
|
|||||
|
15 |
D |
Connection Code |
12 |
Connection Code |
24 |
|
|
Specification |
MPO12 |
Specification |
MPO24 |
|||
|
|
|
|||||
