Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-J599 Hybrid Connector

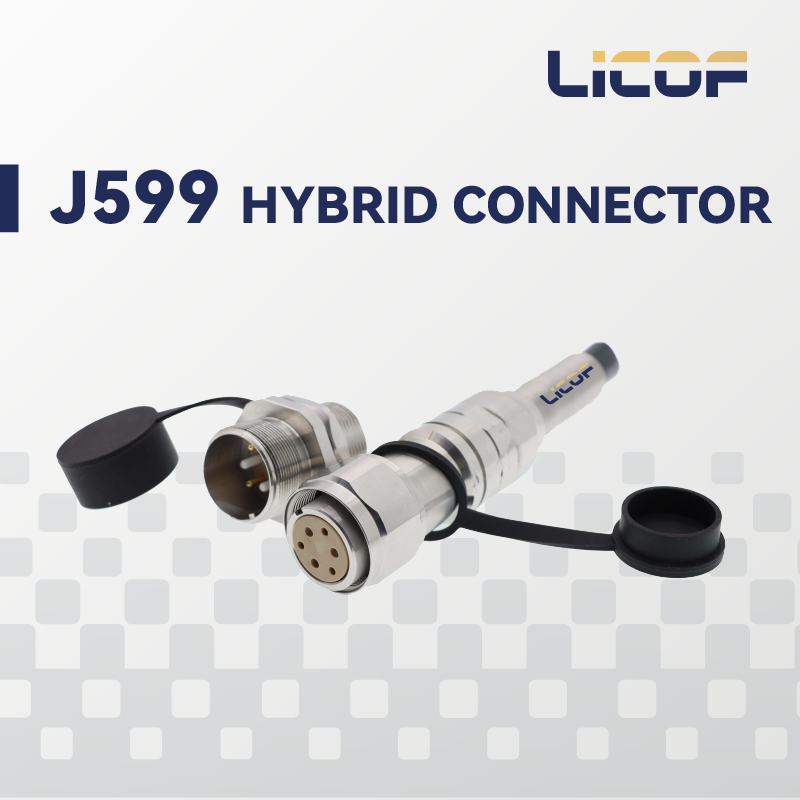

J599 2-fiber 2-electrical connector integrates optical and electrical functions, enabling simultaneous transmission of multiple optical and electrical signals. Constructed with stainless steel, it is suitable for long-term operation in harsh environments such as acidic/alkaline conditions, corrosive atmospheres, and marine climates. The plug and socket feature five-key alignment with blind-mate and anti-misinsertion capabilities, utilizing a three-thread quick-connect design with anti-loosening mechanisms. It supports multi-core simultaneous connection and blind insertion; It offers low connection loss and high reliability, with features including waterproofing, dustproofing, harsh environment resistance, and corrosion resistance. Currently available configurations include 2-fiber/2-electrical and 2-fiber/4-electrical. The 2-fiber/2-electrical model uses a 13-series housing, while the 2-fiber/4-electrical model uses a 15-series housing. Customization is available upon customer request.
Table1 J599 Hybrid Connector Main Parameters
|
Insertion loss |
Single-mode |
≤1.0dB |
|
Multi-mode |
≤0.6dB |
|
|
Return loss |
Single-mode |
≥50dB |
|
Insulation resistance |
500VDC ≥5000MΩ (under normal conditions) |
|
|
Contact resistance |
Plug |
≤10mΩ |
|
Mechanical properties |
Socket |
≤500N (main cable) |
|
≤30N (branch cable) |
||
|
Operating temperature |
-40℃～85℃ |
|
|
Protection rating |
IP67 |
|
Optical Cable Diameter |
8.5mm |
|
Sheath Material |
TPU |
|
Tensile Unit |
KEVLAR |
|
Wire |
1.5 sq. mm wire |
|
Fiber Type |
9/125, 50/125, 62.5/125 |
|
Tensile Strength |
Short-term: 600N Long-term: 1200N |
|
Operating Temperature |
-40°C to 85°C |
Table 2 Dimensions Of The External Structure(See more at Figure 1)
|
Shell Name |
Shell Code |
A Max |
Thread |
L Max |
L1 Max |
|
13 |
B |
25.00 |
M15x1-6g |
32 |
42 |
|
15 |
C |
29.40 |
M18x1-6g |
32 |
42 |
Main Features
Compliant with GJB599A (MIL-DTL-38999) Series III Interface
Features five-key alignment for blind mating, anti-misinsertion, and vibration resistance
Utilizes triple-threaded quick-connect with anti-loosening mechanism
Employs ceramic ferrules and ceramic sleeves for precision fiber alignment
Enables optical and electrical connectivity
Applications
Zhitong substations, remote communication base stations
Military optical communication networks
Communication vehicle transmission, long-distance space transmission, portable transmission tools for signal corps personnel
Signal transmission for long-distance videoconferencing during combat exercises
Coal mines, oil wells, natural gas facilities, etc.
Geological exploration communications
Broadcast television relay
Emergency fiber optic communication restoration
