Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-780-1650PM Fiber Optic Patch Cords
Polarization-maintaining fiber patch cords (tail fibers) are fiber optic connectors featuring standard fiber optic connectors at one or both ends. They are manufactured using polarization-maintaining fibers with precise stress axis alignment to create fiber patch cords (tail fibers). Our polarization-maintaining fiber patch cords utilize imported polarization-maintaining fiber optic connectors, offering low loss, high extinction ratio, and low return loss. We also provide optical fiber end-face AR coating upon customer request to optimize fiber-to-free-space coupling.
Table1 780-1650PM Fiber Optoc Patch Cords Main Parameters
|
Category |
Indicator Requirements |
Unit |
||
|
Center Wavelength |
780nm |
980nm |
1310nm |
nm |
|
Connector Type |
FC/SC/LC or customized |
/ |
||
|
Insertion Loss |
≤1.0 |
≤0.8 |
≤0.5 |
dB |
|
Return Loss |
＞50(PC),＞60(APC) |
dB |
||
|
Extinction Ratio |
≥23 |
dB |
||
|
Interchangeability |
≤0.2 |
dB |
||
|
Repeatability |
≤0.2 |
dB |
||
|
Mating Cycles |
＞1000 |
time |
||
|
Fiber Type |
PM850 fiber |
PM980 fiber |
PM1310 fiber |
/ |
|
Power Handling (CW) |
300 |
mW |
||
|
Tensile Load |
≥5 (0.9 optical cable), ≥50 (3.0 optical cable) |
N |
||
|
Operating Temperature |
-20~+85 |
C |
||
Main Features
Covers multiple communication wavelengths including 780nm, 850nm, 980nm, 1064nm, 1310nm, 1550nm, and 1650nm.
Connectors utilize imported connector components, featuring low loss and high extinction ratio.
Offers fast-axis, slow-axis, and custom-angle alignment to meet diverse customer requirements.

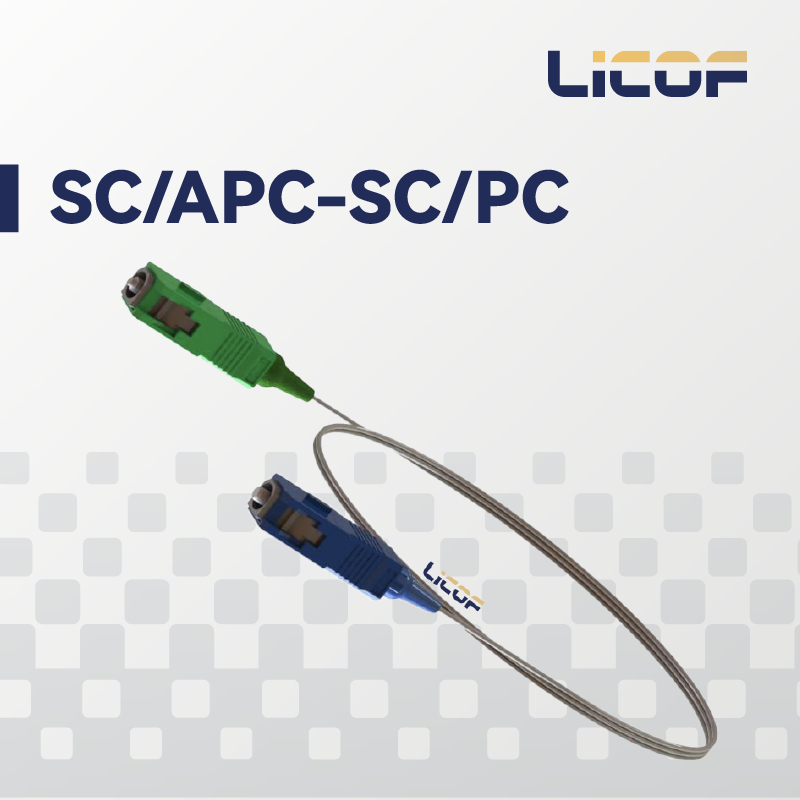

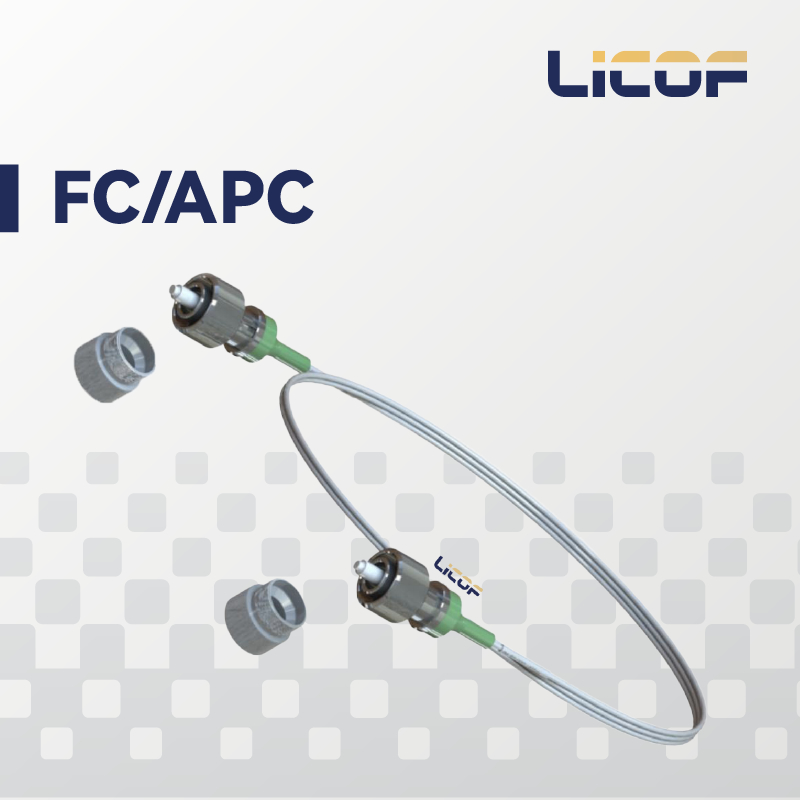

Connectors available in FC, SC, LC, and other models, with support for non-standard (steel-jacketed pins) polarization-maintaining end customization.
Fiber end-face finishes include PC, UPC, APC, or custom grinding angles.
Applications
Related optical detection and applications
Fiber optic sensing systems
Medical detection equipment
Aviation and aerospace communications equipment
