Model Number:
LKF-J599 III

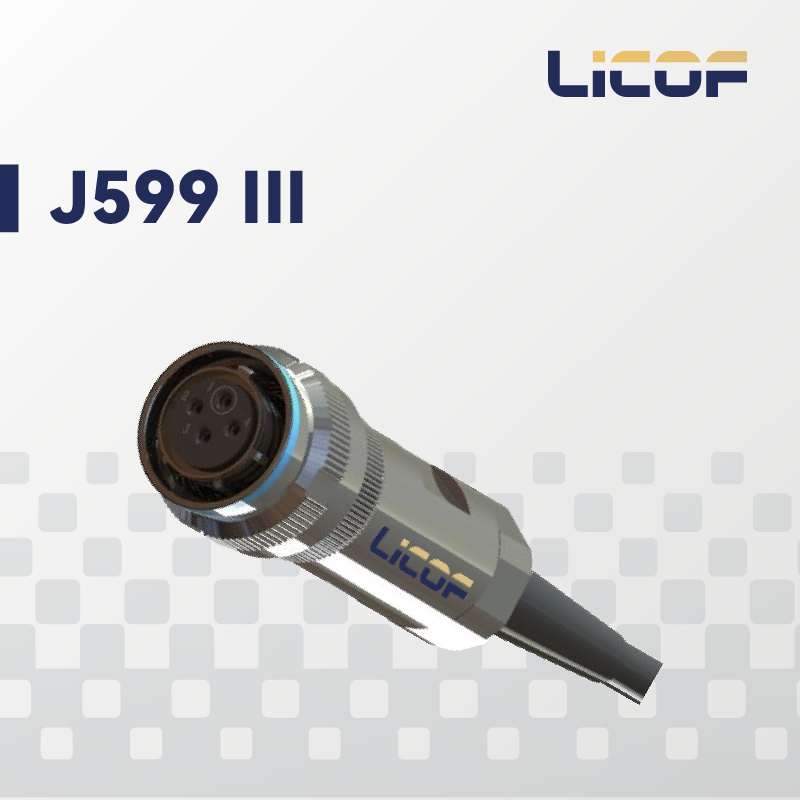

The J599 III series fiber optic connectors use a five-key circular identification positioning system. The five-key positioning system has blind insertion and anti-misinsertion functions, as well as vibration resistance. The connectors are made of 316L or aluminum alloy materials. They feature low loss, high reliability, and removable fiber components for easy on-site installation. The outer casing can be made of different materials and coatings to meet different environmental requirements.
Table1 J599 III Main Parameters
|
Insertion loss |
≤0.6 dB (≤4 cores) |
|
≤0.75 dB (≥5 cores) |
|
|
Mechanical life |
500 times |
|
Operating temperature |
-55°C to +85°C (depending on the optical cable used) |
|
Tensile strength |
≥720 N (multi-core cable) |
|
Vibration |
10 Hz to 2000 Hz, acceleration: 147 m/s² |
|
Impact |
980 m/s² |
Table 2 Dimensions Of The External Structure(See more at Figure 2)
|
Shell Name |
Shell Code |
A Max |
Thread |
L Max |
|
09 |
A |
21.80 |
M12x1-6g |
32 |
|
11 |
B |
25.00 |
M15x1-6g |
32 |
|
13 |
C |
29.40 |
M18x1-6g |
32 |
|
15 |
D |
32.40 |
M22x1-6g |
32 |
|
17 |
E |
35 60 |
M25x1 6g |
32 |
|
19 |
F |
38.50 |
M28x1-6g |
32 |
|
21 |
G |
41.70 |
M31x1-6g |
32 |
|
23 |
H |
44.90 |
M34x1-6g |
32 |
|
25 |
J |
48.00 |
M37x1-6g |
32 |
Main Features
Compliant with GJB599A (MIL-DTL-38999) Series III interface
The connector uses a five-key circumferential identification and positioning mechanism for blind mating and anti-misinsertion
The socket features a three-thread quick-connect design with an anti-loosening mechanism
The housing can be made from different materials and coatings to meet various environmental requirements
Constructed from stainless steel 316L material, with high contact density and electromagnetic shielding functionality
Utilizes ceramic pins and ceramic sleeves for precise fiber optic alignment
Applications
Aviation
Electronics
Weapons
Ships
Electricity
Fiber optic communication systems for harsh outdoor environments
