Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
OM60, OM70, OM98, OM120, customized
Product Introduction
FOG optical module is a modular component of Fiber Coil + MIOC designed for fiber optic gyros. The fiber coil and MIOC are spliced together and integrated in a shell. The FOG optical module can be treated as an independent integrated sensing component, and the users no longer need expensive PM fiber fusion splicer to splice PM fibers of fiber coil and MIOC.
Product Features
Product Specifications

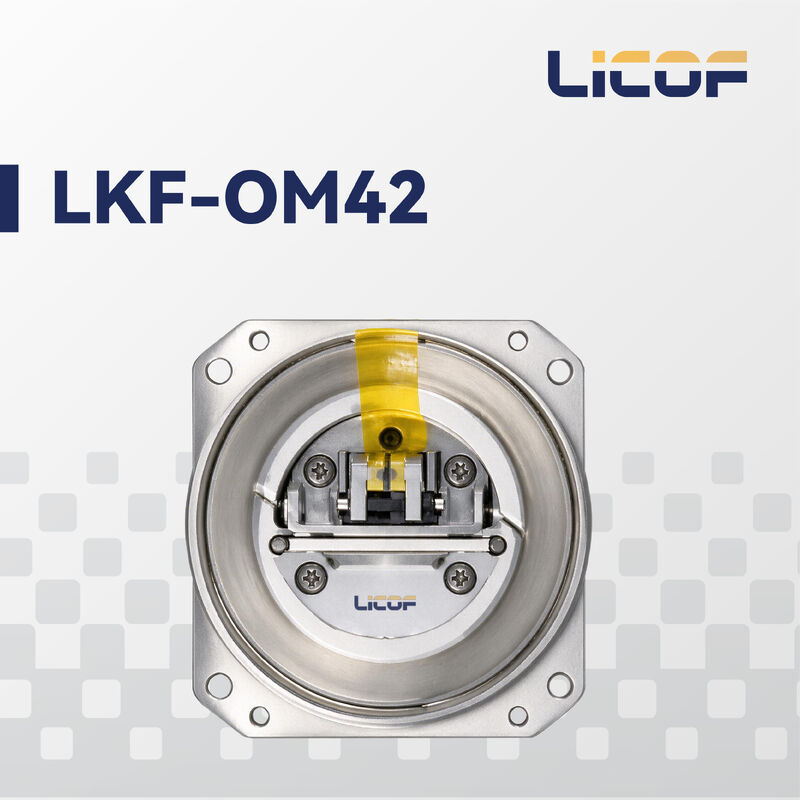

| FOG Optical Module | |
| Type | LKF-OM42 |
| Size | 42*42*13.5mm |
| Working Wavelength | 1310nm |
| Fiber Coil Length | 350m |
| MIOC Half-wave Voltage | ≤4.5V |
| FOG Target Precision | 0.3°/h (1σ,10s smooth) |
| Bias | ≤2°/h |
| Bias Stability @ -45~+70℃,1℃/min | ≤1.5°/h |
| Bias Peak-to-Peak Value | ≤2°/h |
| Random Walk Coefficient | ≤0.03°/√h |
| Magnetic Sensitivity | 0.3°/h/Gs |
| Working Temperature | -45 ~ +70℃ |
Application
Fiber optic gyroscope
