Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-PMF

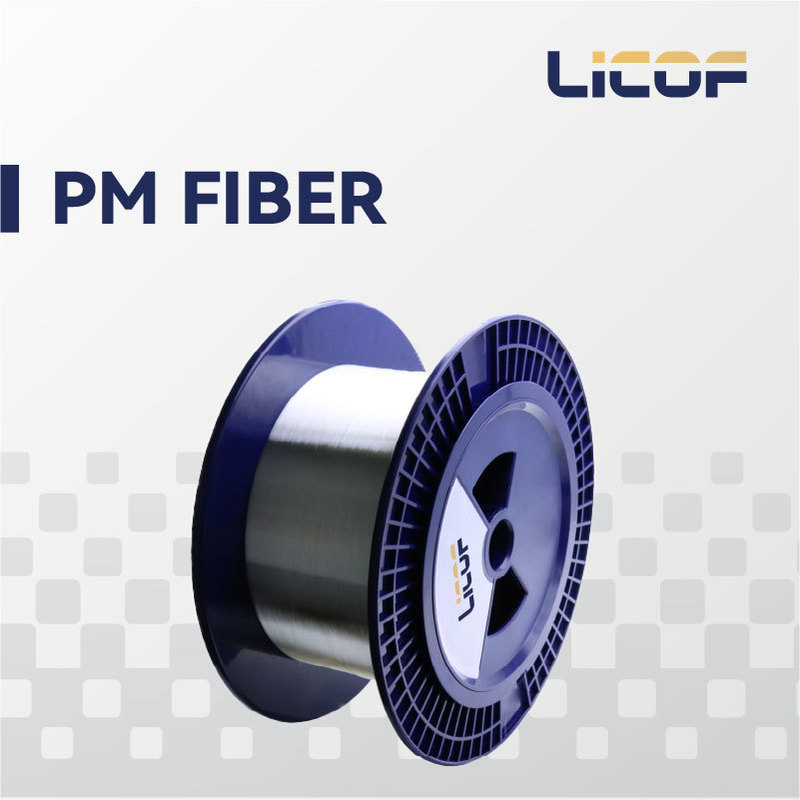

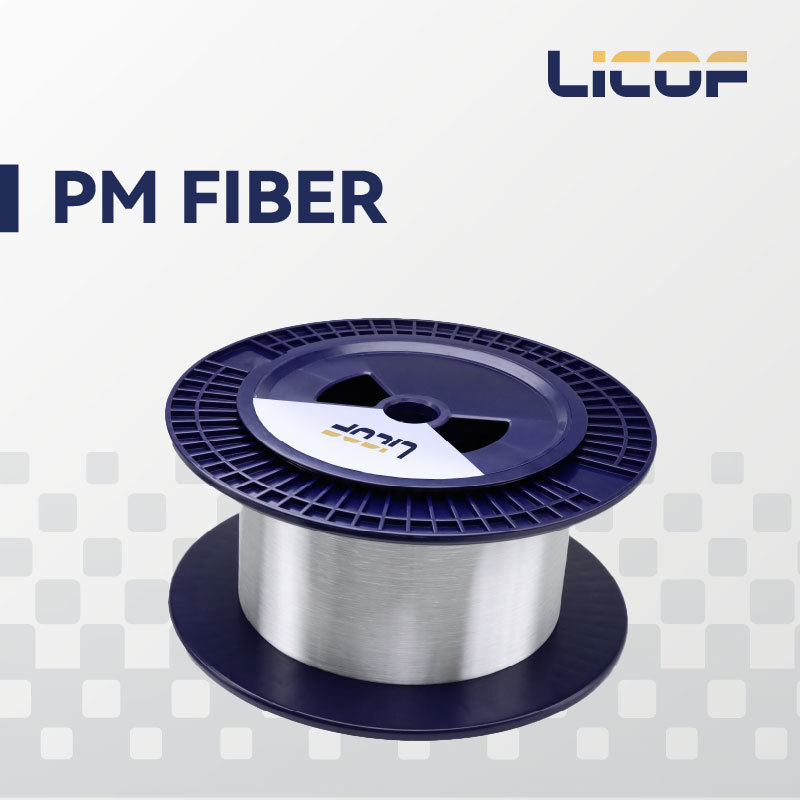

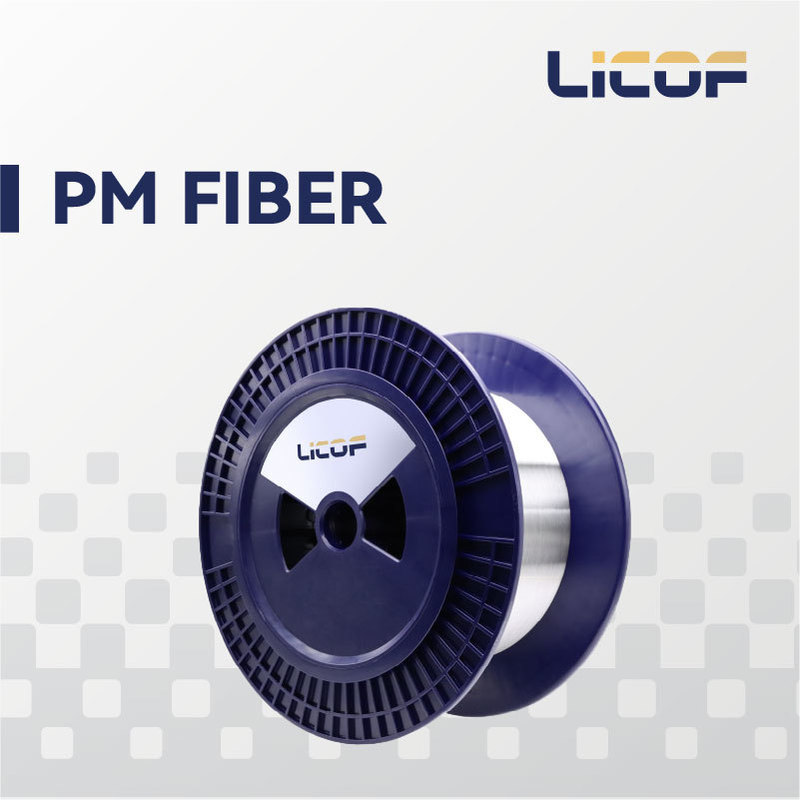

Because of the miniaturized trend of fiber optic gyros, it is necessary to wind fiber coils through smaller diameter Panda PM fibers. In order to meet the needs of customers, the small diameter PMF is designed and manufactured through thin coating technology which decreases the PMF diameter from 165μm to 135μm, and delivers outstanding performance in compact gyros. The performance of small diameter Panda PM fiber can be guaranteed, such as high birefringence, low attenuation, crosstalk stability, precise refractive index profiles, good geometric symmetry and longitudinal uniformity.
Technical Specification
|
Polarization Maintaining Fiber |
||
|
Fiber Type |
PMF1310_80/135 |
PMF1550_80/135 |
|
Operating Wavelength |
1310nm |
1550nm |
|
Cut-off Wavelength |
1100 ~ 1290nm |
1290 ~ 1520nm |
|
Mode Field Diameter |
6.0±0.5μm |
6.5±0.5μm |
|
Attenuation |
≤0.6dB/km |
≤0.5dB/km |
|
Beat Length |
≤2.5mm |
≤3mm |
|
Crosstalk @1000m |
≤-25dB |
≤-25dB |
|
Cladding Diameter |
80±1μm |
80±1μm |
|
Coating Diameter |
135±5μm |
135±5μm |
|
Cladding Non-Circularity |
≤1% |
≤1% |
|
Core/Cladding Concentricity |
≤0.5 |
≤0.5 |
|
Coating Type |
Dual-layer UV-acrylate |
Dual-layer UV-acrylate |
|
Operating Temperature |
-45 ~ +85 ℃ |
-45 ~ +85 ℃ |
|
Proof Test |
100kpsi |
100kpsi |
Small diameter, Low attenuation
High birefringence, short beat length
Excellent polarization maintaining property
Low bending-induced attenuation
High stability and reliability
Fiber optic gyroscope
Polarization sensitive devices
