Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-SLD

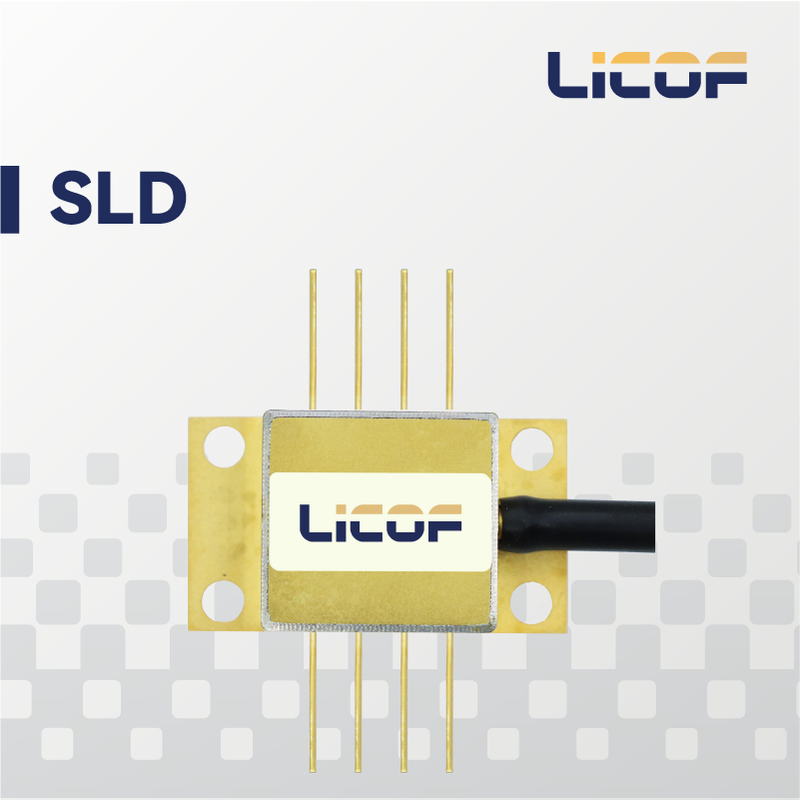

SLD is fabricated with high stability of output optical power, high symmetry in the optical spectrum, and high reliability during all working temperature range.
Standard 8-pin butterfly structure is used for compacted hermetic package. The chip temperature can be controlled by external PCB to realize long term stable operation.
Technical Specification
|
LKF 1310nm SLD |
|
|
Working Wavelength |
1310nm |
|
Spectrum Bandwidth |
≥35 nm |
|
Output Power@100mA |
200~400 μW 400~800 μW ≥800 μW |
|
Spectrum Ripple |
≤0.2 dB |
|
Polarization Extinction Ratio |
≤1.2 dB or ≥12 dB |
|
Output Power Variation at Full Temperature |
≤3% |
|
TEC Cooling Current |
≤700 mA (stable working state at full temperature) ≥1200mA (quick start state) |
|
Package |
Type H, 8-pin / Type J, 6-pin |
|
Size |
22mm×12.6mm×(7.3~8.0)mm (Type H package) 16.8mm×9mm×5.7mm (Type J package) |
|
Tail Fiber |
PM/SM, ≥1m |
|
Working Temperature |
-45~+70℃ |
|
Storage Temperature |
-55~+85℃ |
Product Code Table
|
Product code |
Power [um] |
Output pigtail |
Axis Alignment |
Package Type |
|
GHCN01 |
＞800 |
125/250 PM |
- |
H |
|
GHCF02 |
＞800 |
125/250 PM |
Fast |
H |
|
GHCN03 |
400~800 |
125/250 PM |
- |
H |
|
GHCN04 |
200~400 |
125/250 PM |
- |
H |
|
GHLF02 |
＞800 |
80/165 PM |
Fast |
H |
|
GHCS02 |
＞800 |
125/250 PM |
Slow |
H |
|
GHLN01 |
＞800 |
80/165 PM |
- |
H |
|
GJCN03 |
400~800 |
125/250 PM |
- |
J |
High ReliabilityHigh optical output power
Excellent stability of optical power
High PER and low PER is optional
Lower Electrical power supply
Wide working temperature range
Fiber Optic Gyroscope (FOG)
Fiber Optic Current Transformer (FOCT)
Optical Coherence Tomography (OCT)
Biomedical Imaging
Other Fiber Optic Sensing
Fig.1 Dimensions Of SLD
H Type
J Type
