Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
OM60, OM70, OM98, OM120, customized

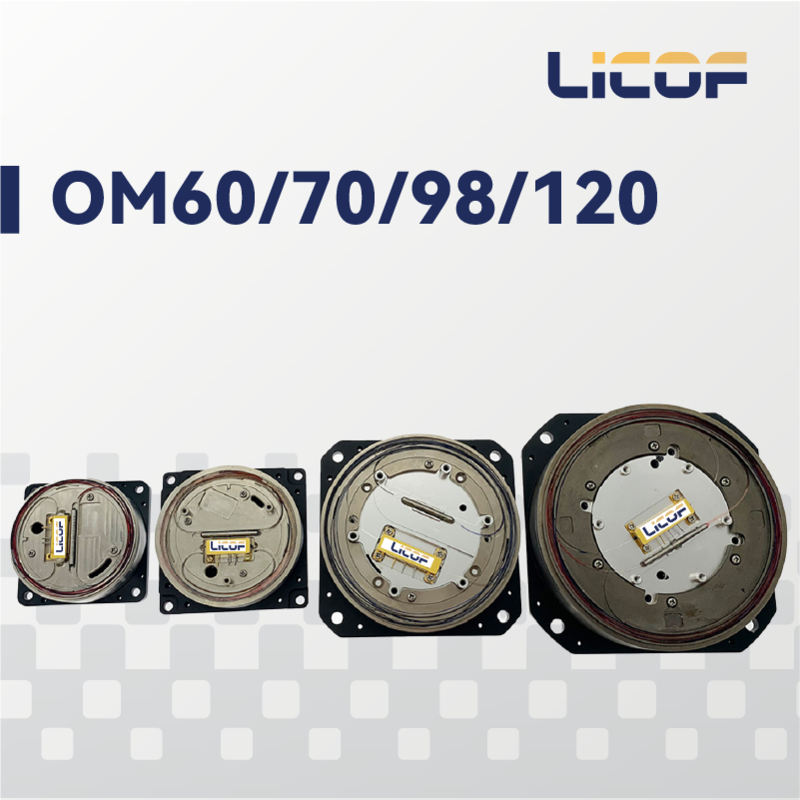

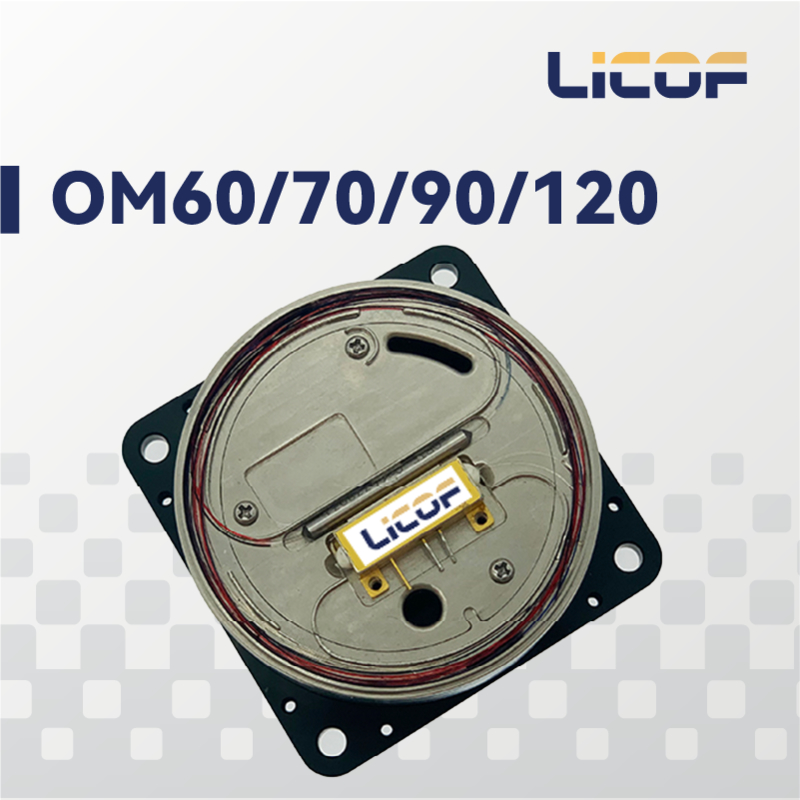

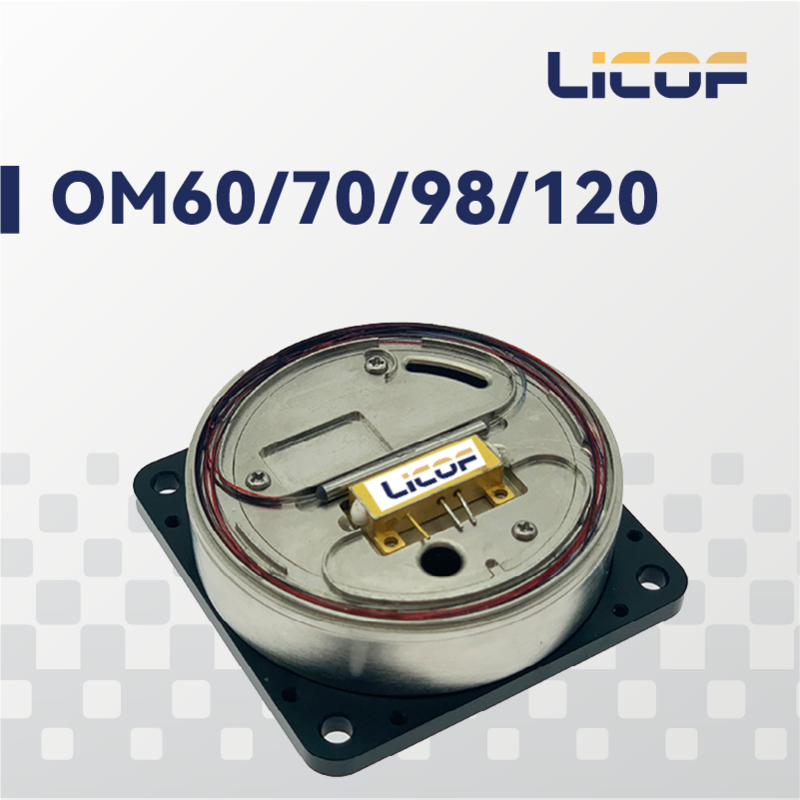

FOG optical module is a modular component of Fiber Coil + MIOC designed for fiber optic gyros. The fiber coil and MIOC are spliced together and integrated in a shell. The FOG optical module can be treated as an independent integrated sensing component, which has electrical interface and single-mode tail fiber. When using the FOG optical module, it is only need to connect electrical interface with the signal processing circuit and splice the single-mode fiber pigtail with PIN-FET through single-mode fiber fusion splicer, and the users no longer need expensive PM fiber fusion splicer to splice PM fibers of fiber coil and MIOC.
Technical Specification
|
FOG Optical Module |
||||
|
Type |
OM60 |
OM70 |
OM98 |
OM120 |
|
Size |
Φ60*19mm |
Φ70*24mm |
Φ98*27mm |
Φ120*26mm |
|
Working Wavelength |
1310nm |
1310nm |
1550nm |
1550nm |
|
Fiber Coil Length |
500m |
550m |
1460m |
2220m |
|
MIOC Half-wave Voltage |
≤3.5V |
≤3.5V |
≤3.5V |
≤3.5V |
|
FOG Target Precision |
0.1°/h (10s avg.) |
0.05°/h (10s avg.) |
0.015°/h (10s avg.) |
0.003°/h (100s avg.) |
|
Bias Peak-to-Peak Value |
1°/h |
0.8°/h |
0.2°/h |
0.1°/h |
|
Magnetic Sensitivity |
0.1°/h/Gs |
0.02°/h/Gs |
0.02°/h/Gs |
0.02°/h/Gs |
|
Working Temperature |
-45 ~ +70℃ |
|||
Key Features
High stability of output optical power
High stability of wavelength
Gaussian spectrum
High reliability and temperature adaptability
Application
Fiber optic gyroscope
