Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
FC60,FC70,FC98,FC120,customized
|
FC |
Fiber type |
Fiber optic coil length |
Coil size |
Winding method |
|
|
A: PM1310-80/135 B: PM1550-80/135 C: PM1310-80/165 D: PM1550-80/165 S: Special |
A: 200~500m B: 500~1000m C: 1000~1500m D: 1500~2000m S: Special |
70: ID 53mm/ H 10.5mm 98: ID 79mm/ H 11mm 120: ID 95mm/ H 13.5mm S: Special |
Q: Quadrupole M: Multipole S: Special |
|

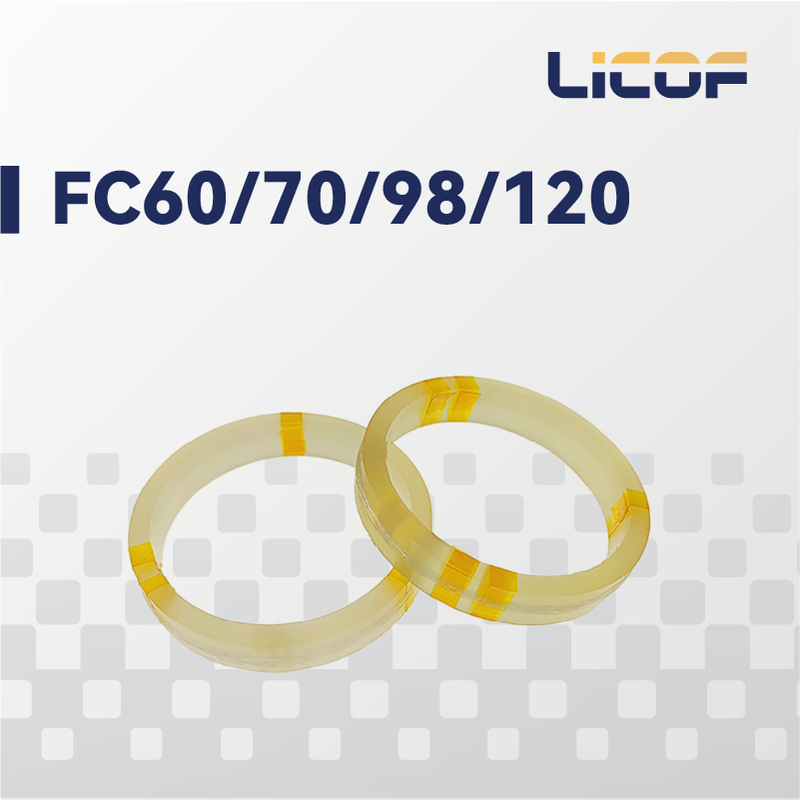

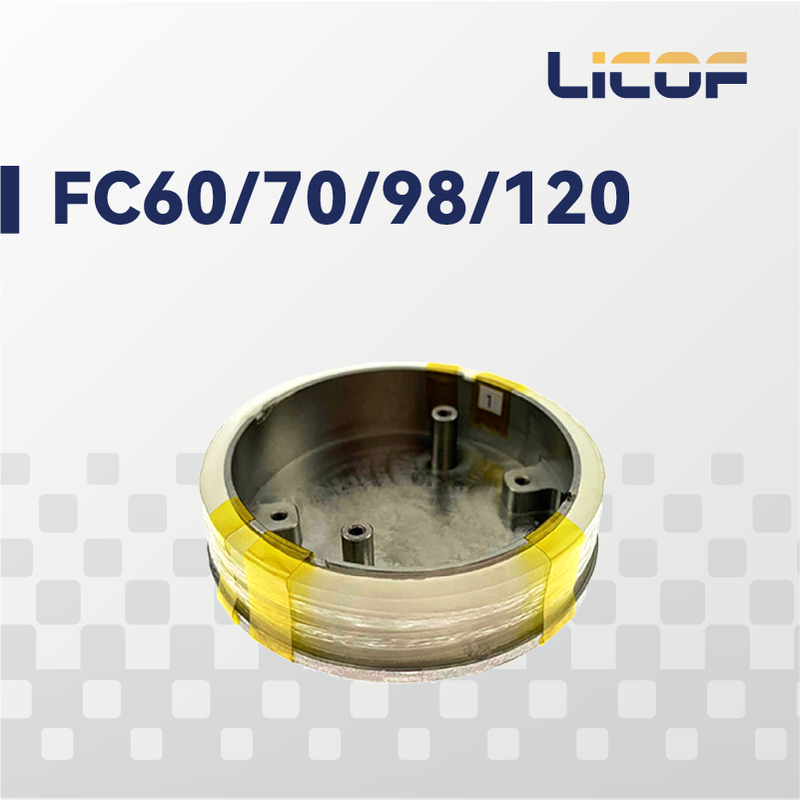

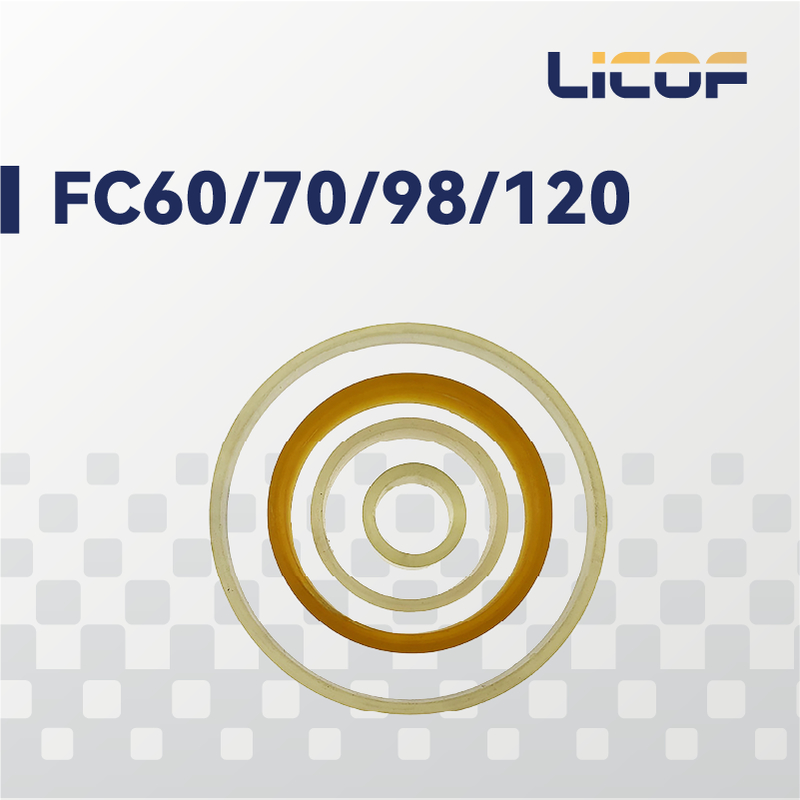

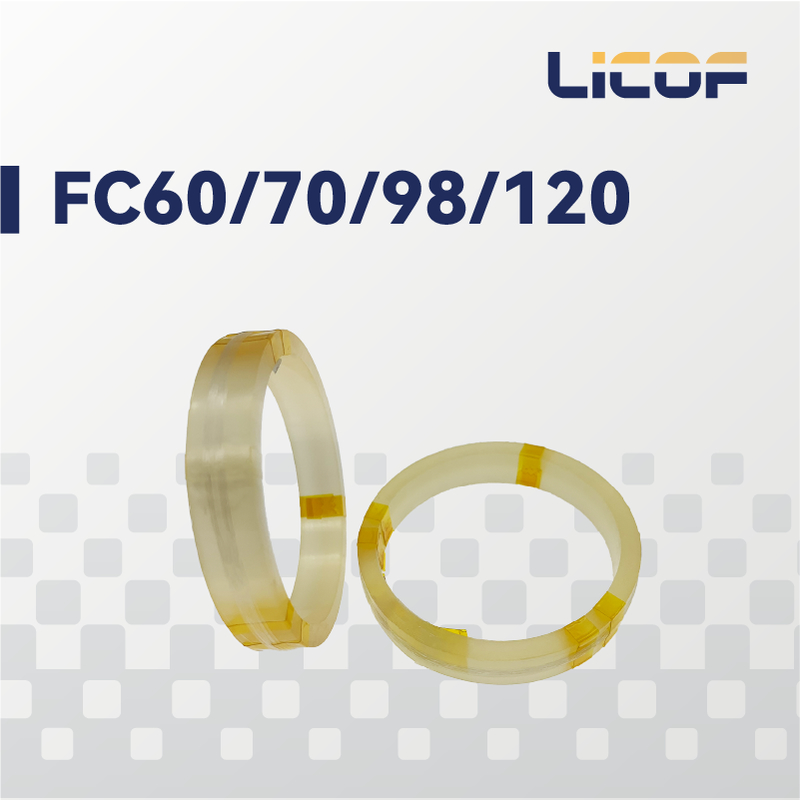

LKF PM Fiber Coil |
||||
|
Model |
LKF-FC60 |
LKF-FC70 |
LKF-FC98 |
LKF-FC120 |
|
Wavelength |
1310nm |
1310nm |
1550nm |
1550nm |
|
Size (ID/ED/H) |
39/55/8.5mm |
53/63/10.5mm 53/65/10.5mm |
75/93/12mm |
93.5/113/13.5mm |
|
Fiber Type |
PM 1310_80/135 |
PM 1310_80/135 |
PM 1550_80/135 |
PM 1550_80/135 |
|
Fiber Length |
500±10m |
440±10m 550±10m |
1460±10m |
2220±10m |
|
PER |
≥20dB |
≥24dB ≥22dB |
≥20dB |
≥18dB |
|
Insertion Loss |
≤0.4dB |
≤0.4dB |
≤0.7dB |
≤1.5dB |
|
FOG Target Precision |
0.1°/h(10s avg.) |
0.08°/h(10s avg.) 0.05°/h(10s avg.) |
0.015°/h(10s avg.) |
0.003°/h(100s avg.) |
|
Working Temperature |
-45~＋80℃ |
|||
