1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils

1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils

Adjustable UV Curing Chamber

High Performance UV Curing Chamber

Adjustable Uv Curing Machine

Place of Origin:

China

Brand Name:

Liocrebif

Certification:

GJB 9001C-2017

Model Number:

LKF-UV02

Chat Now
Request A Quote
1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils 1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils 1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils 1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils
Product Details
Color&Classification:
LKF-UV02
Dimensions:
155×115×190cm
Brand:
Liocrebif
Origin Place:
China
Application:
Fiber Coils, Other Curing Application
Output Format:
RS422
Highlight:

Adjustable UV Curing Chamber

,

High Performance UV Curing Chamber

,

Adjustable Uv Curing Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
5000-25000CHY
Packaging Details
Wooden box/Cardboard box/Container
Delivery Time
2-4 weeks
Payment Terms
T/T
Supply Ability
10000
Related Products
Good price 1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils online

1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils

Chat Now
Good price High Performance Fiber Coil Winding Machine Precise High Efficiency 155×115×190cm Dimensions online

High Performance Fiber Coil Winding Machine Precise High Efficiency 155×115×190cm Dimensions

Chat Now
Good price Accurate Optical Fiber Winding Machine Automatic For FOG Coil Quadrupole online

Accurate Optical Fiber Winding Machine Automatic For FOG Coil Quadrupole

Chat Now
Good price High Precision Coil Winding Machine 220×110×220cm For FOG Coils online

High Precision Coil Winding Machine 220×110×220cm For FOG Coils

Chat Now
Contact Us
+86 159-1069-1166
sales@liocrebif.com
Chat Now
Product Description
Essential details
MOQ:1
Specification Number:LKF-UV02
Product Introduction
Introduction

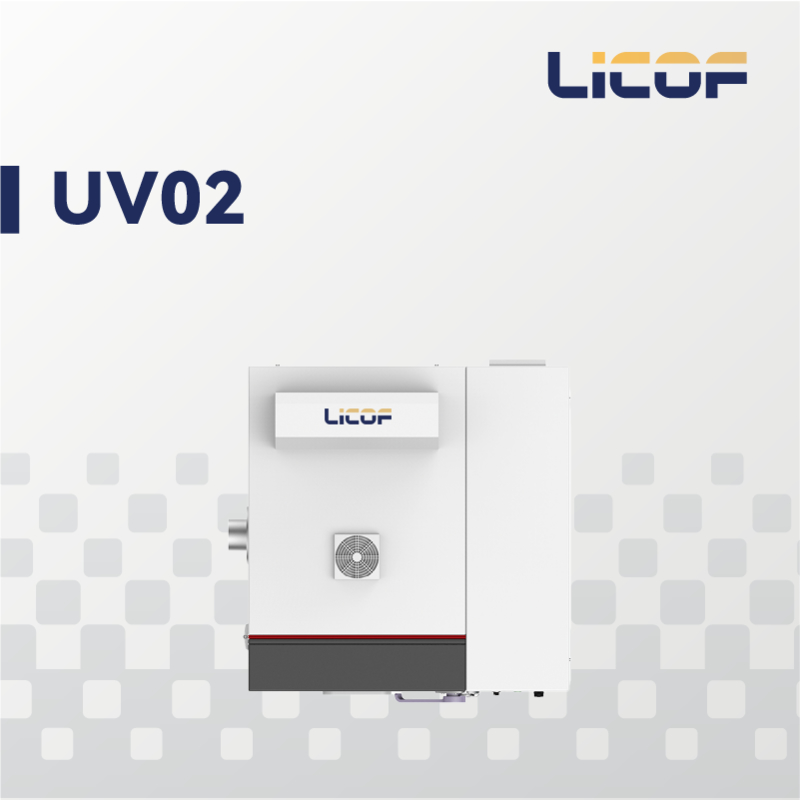

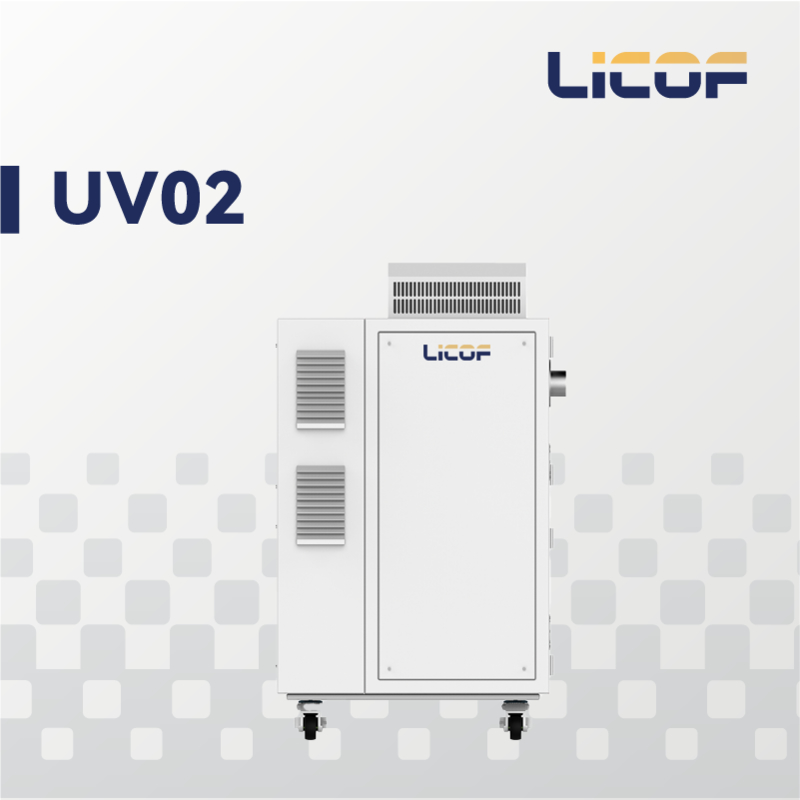

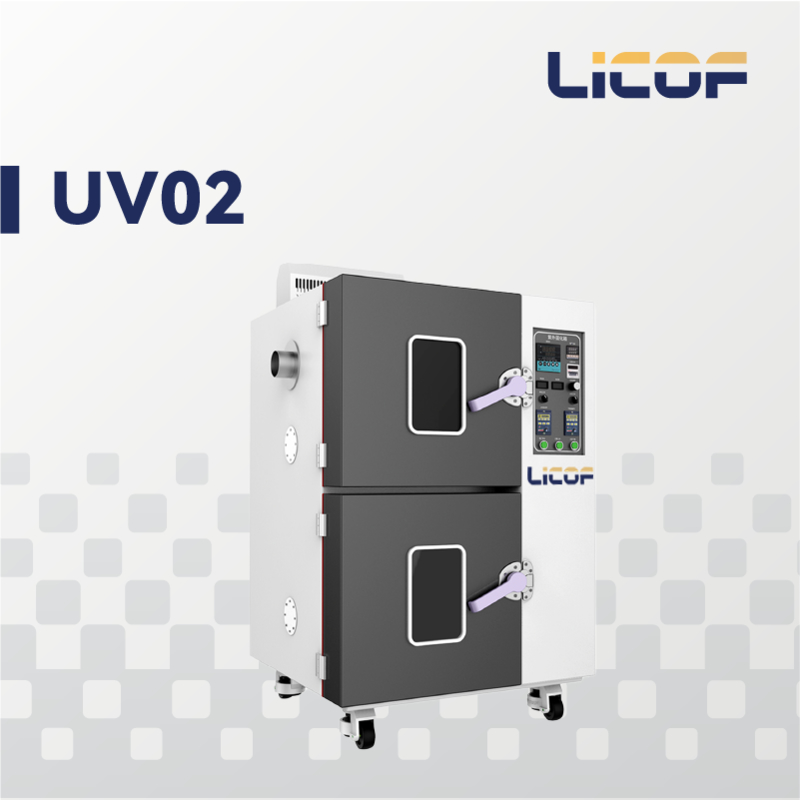

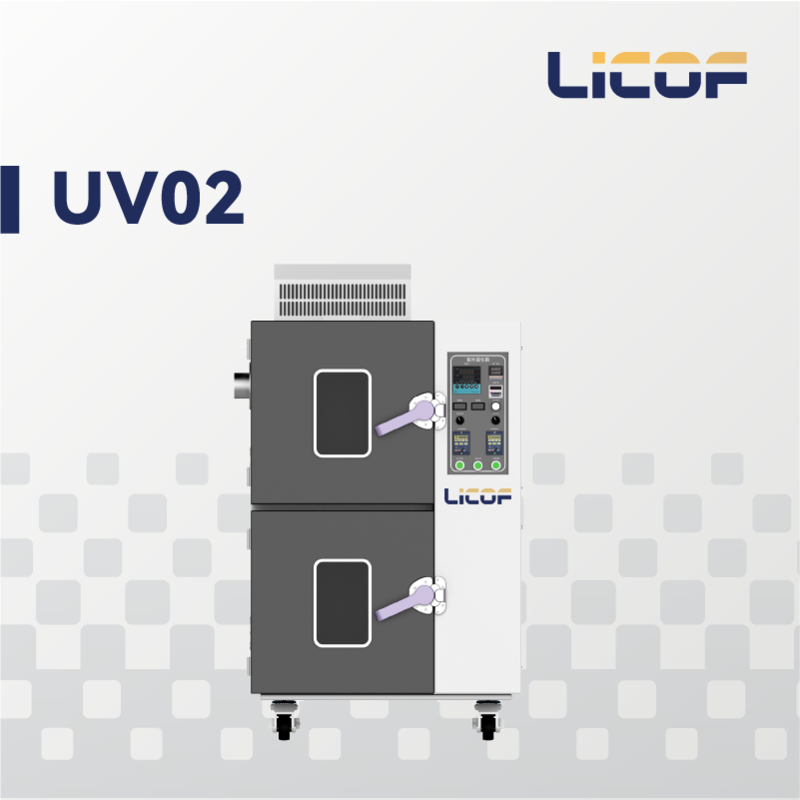

LKF-UV02 UV curing chamber is mainly used for curing the completed fiber optic loops by UV light to make the glue fixed with the fiber optic and skeleton. The equipment can set the UV intensity and curing temperature, so the curing process can be done under constant conditions.



Equipment Composition

  • Curing chamber heating system: can work without the UV light on
  • UV light system: consists of UV light, reflective shade, light adjustable power, exhaust fan
  • Rotating system: consists of rotating motor, infinitely variable governor
  • Irradiance controllable



UV02 UV Curing Chamber

UV Light, Temperature Controlling System Data

UV Lamp

High Pressure Hg Lamp





1000w

UV Lamp Length

165mm (Light area 50mm)

Lamp Shade Size

150*105mm

UV Exposure Control

0-99 (H, M, S) Adjustable

Rotating System Data

Motor Power

100w

Rotating Speed

1r/min-20r/min Adjustable

Rotating Spindle

50mm, M12 Screws



Main features
Adjustable UV intensity
Adjustable curing temperature
Rotational curing
Lighting distance adjustable
Application Areas
Fiber coils
Other curing application
1000w UV Curing Chamber Adjustable Uv Curing Machine High Performance For Fiber Coils 0
