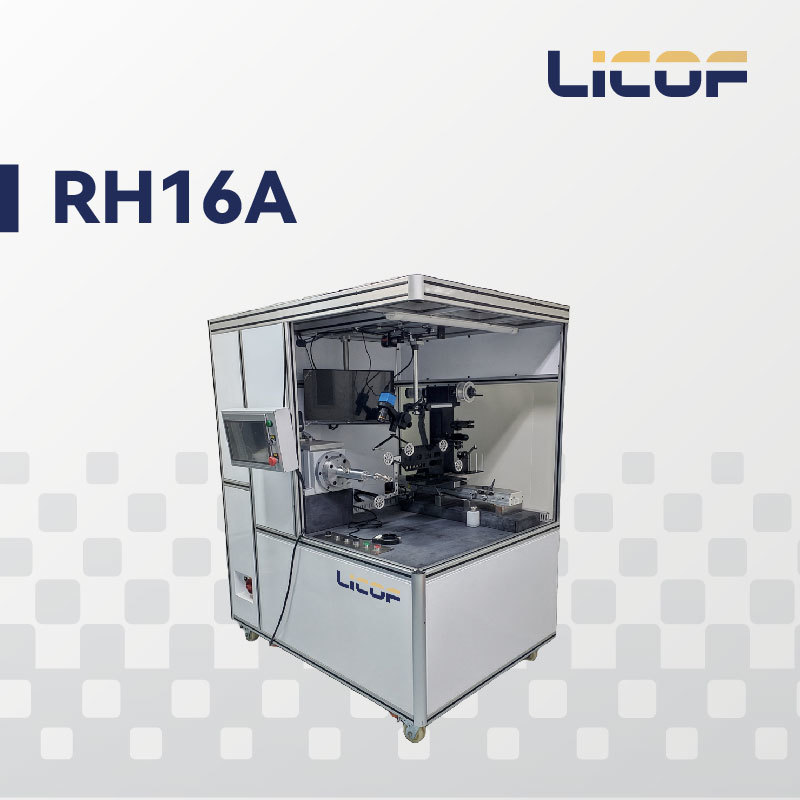

RH16A multi-pole coil winding machine is the core equipment for making fiber coils of gyroscopes, and our company has the core technology of R&D and manufacturing. This winding machine can wind all kinds of symmetric or simple winding process of fiber coils, with easy operation, high precision automatic fiber laying, high precision automatic glue coating, high degree of automation, stable operation and so on.
Equipment Composition
|
Fiber take-up device |
1 set |
|
Fiber laying device |
1 set |
|
Fiber pay-off device |
1 set |
|
Tension sensing device |
1 set |
|
Coil skeleton fixing spindle |
1 set |
|
Fiber guiding device |
1 set |
|
Automatic gluing device |
1 set |
|
Industrial control computer and display unit |
1 set |
|
HD camera and display unit |
1 set |
|
Standard fiber rewinding spool |
2 pcs |
|
RH16A Multipole Fiber Coil Winding Machine |
|||
|
Fiber diameter support |
0.05mm~0.5mm |
Maximum skeleton width |
80mm |
|
Maximum winding speed |
80R/min |
Turns-counting error |
0.01 turn |
|
Tension range |
3-50g |
Parameter display |
Turns, Tension, Length, Layer, Speed |
|
Tension accuracy |
±0.3g |
Configurable parameter |
Diameter, speed, tension, width |
|
Winding fiber coil O.D. |
20mm-200mm |
L×W×H |
1550mm×1150mm×1900mm |
Main features Wind quadrupole, octupole, and hexadecapole fiber coils Fully sealed welded structure, strong anti-vibration Precise automatic fiber laying Real-time display of winding length, turns, layers, etc. Application Areas Winding fiber coils
