Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-RH04

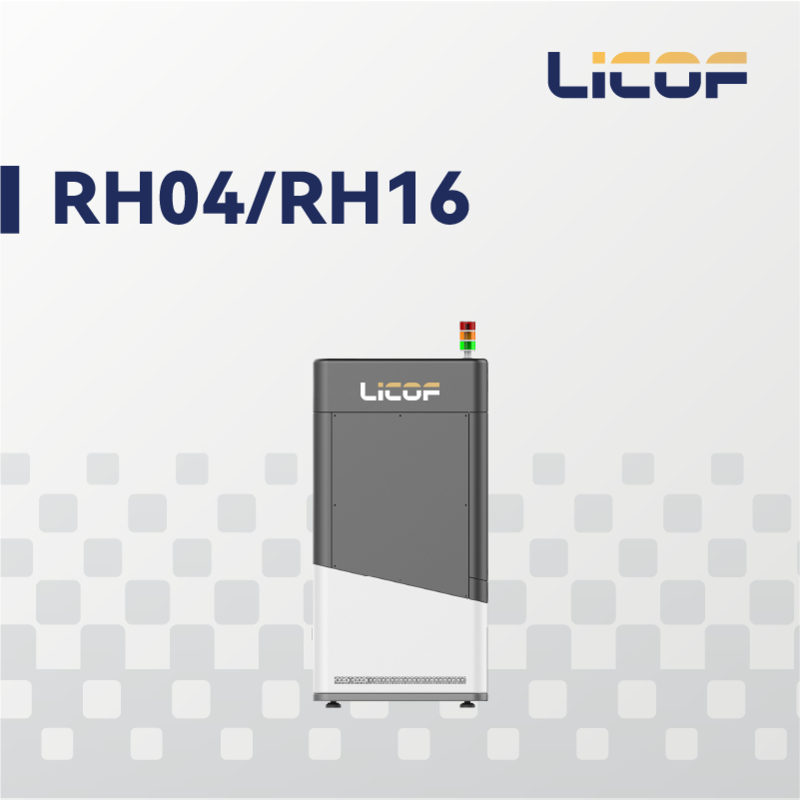

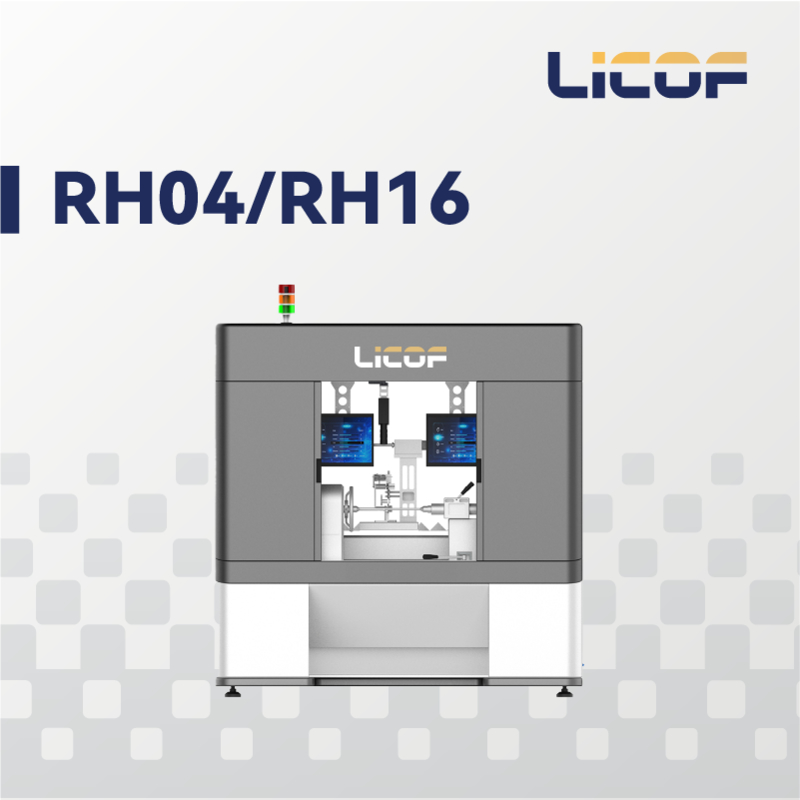

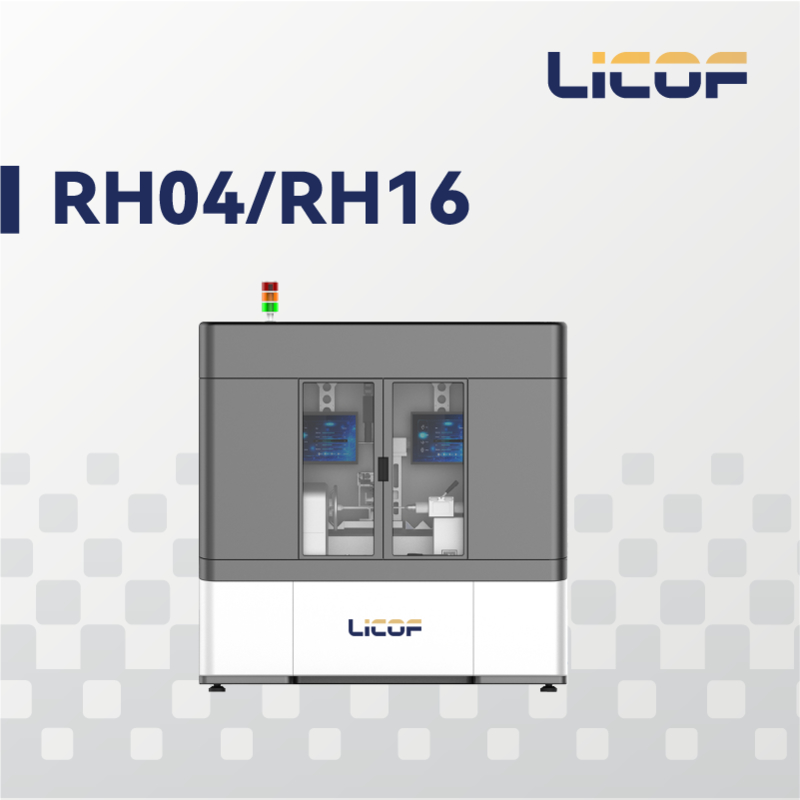

LKF-RH04 fiber coil winding machine high automation, precise tension control, easy operation, etc. It is suitable for FOG coil quadrupole symmetrical. It adopts programmable logic control PLC module and servo motor to complete the precise positioning and control of the fiber coil winding machine. Through an external display for human-computer interaction, can input operating instructions and the display of key parameters, which is convenient for real-time monitoring of the winding process. A CCD camera is to observe on the winding process, so as to find out the irregularities in time.
Equipment Composition
|
Machine structure |
1 set |
|
Fiber take-up device |
1 set |
|
Fiber pay-off device |
1 set |
|
Rotating system |
2 sets |
|
Standard fiber rewinding spool |
4 pcs |
|
Rail fiber arranging system |
2 set |
|
Tension control and fiber guiding system |
2 sets |
|
Industrial control computer and display unit |
1 set |
|
HD camera and display unit |
1 set |
|
RH04 Quadrupole Fiber Coil Winding Machine |
|||
|
Fiber diameter support |
0.01mm~0.26mm |
Max. spindle width |
60mm |
|
Maximum winding speed |
50R/min |
Turns-counting error |
0.1 turn |
|
Tension range |
5-50g |
Parameter display |
Turns, Tension, Length, Layer, Speed |
|
Tension accuracy |
±0.1g |
Configurable parameter |
Diameter, speed, tension, width |
|
Max. Skeleton Diameter |
340mm |
L×W×H |
2200mm×1100mm×2200mm |
Main features Wind quadrupole, octupole, and hexadecapole fiber coils Fully sealed welded structure, strong anti-vibration Precise automatic fiber laying Real-time display of winding length, turns, layers, etc. Application Areas Winding fiber coils
