Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-FX02

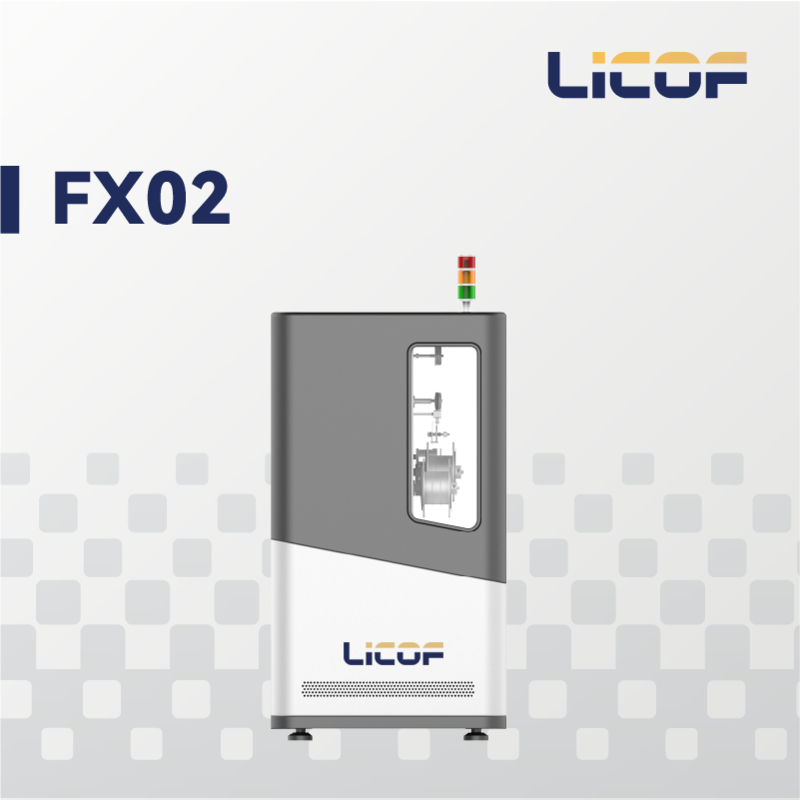

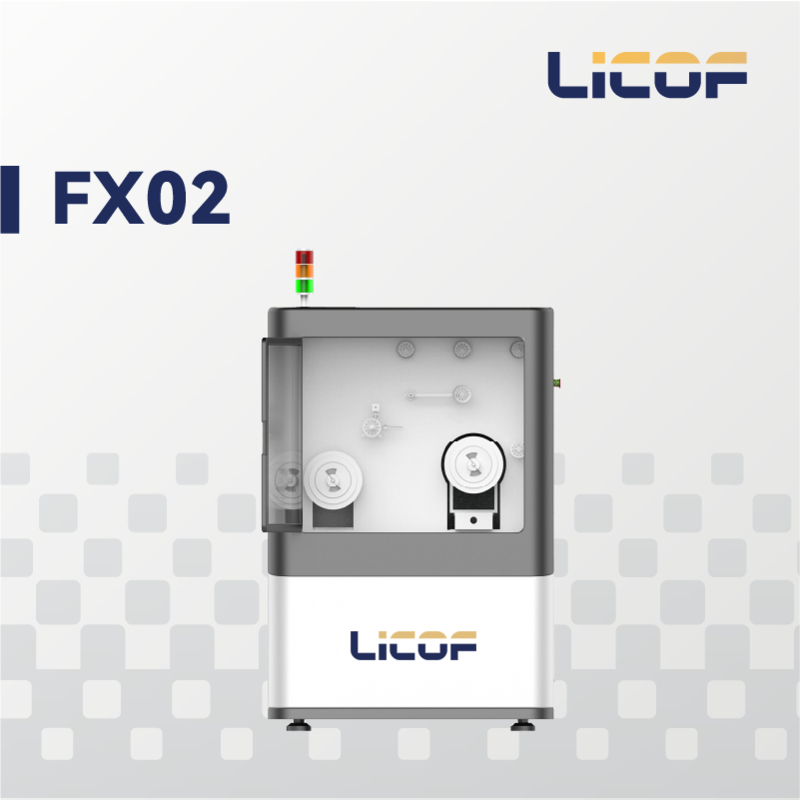

LKF-FX02 Fiber Rewinding Machine is specially designed for fixed-length winding and rewinding of optical fibers. By inputting the target winding length through the man-machine interface, it can complete the fixed-length winding and stop the machine automatically without manual participation, so as to realize the production automation and improve the production efficiency.
Equipment Composition
1. Fiber pay-off and take-up system
2. Clipper installation device
3. Fiber pay-off rail system
4. Touch screen
5. Fiber arrangement wheels
6. Tension control system
7. Meter counting device
|
FX02 Fiber Rewinding Machine |
|
|
Fiber Diameter Support |
φ0.05~0.26mm |
|
Max Operating Speed |
600R/min |
|
Tension Control Range |
8g-15g(speed< 200 R/Min) |
|
Main Spindle Diameter |
15mm |
|
Max Support Spool Diameter |
250mm |
|
Length Calculating Bias |
3‰ |
|
Dimension |
L*W*H:1000mm×800mm×1600mm |
|
Power |
220V(±10%),50Hz,2.0KW |
Main features Standard 25km fiber spool Precision fiber arrangement Active pay-off structure Tension control accuracy ±2g PLC control Application Areas Fiber rewinding Fiber coils Time delay coils
