Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-MSI100
Document:

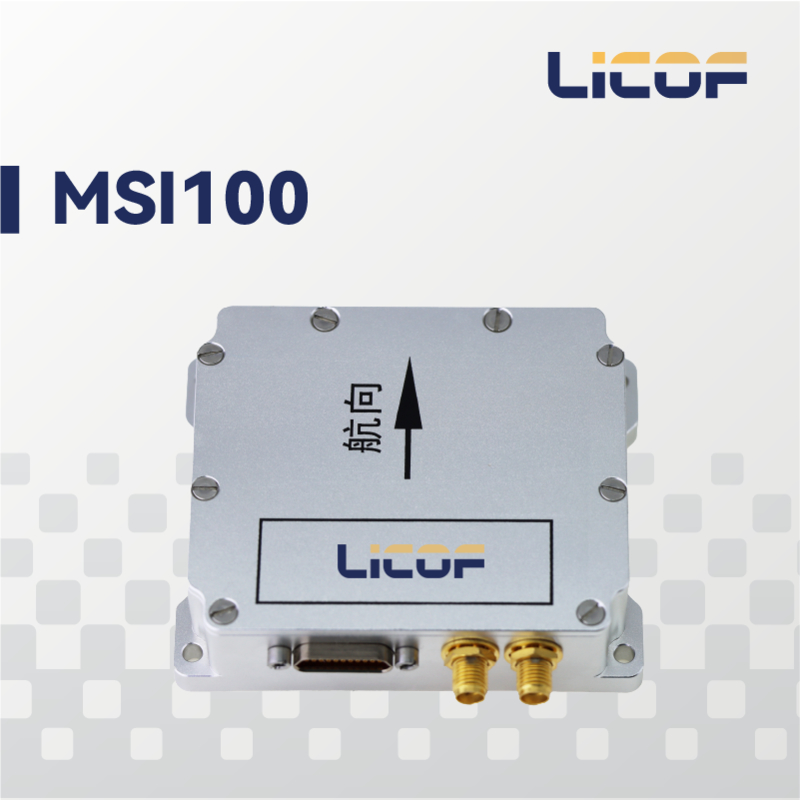

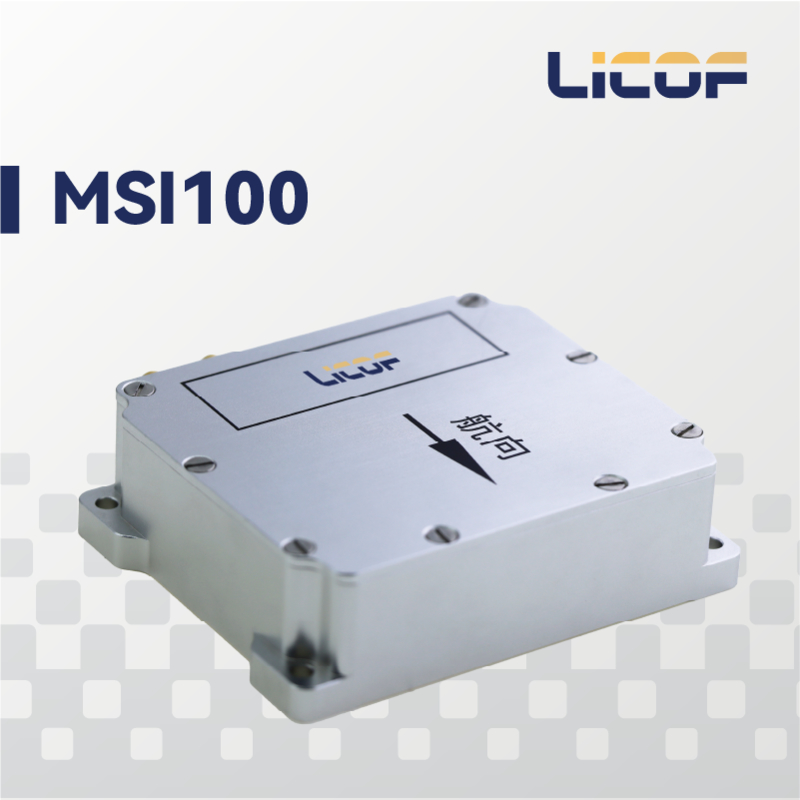

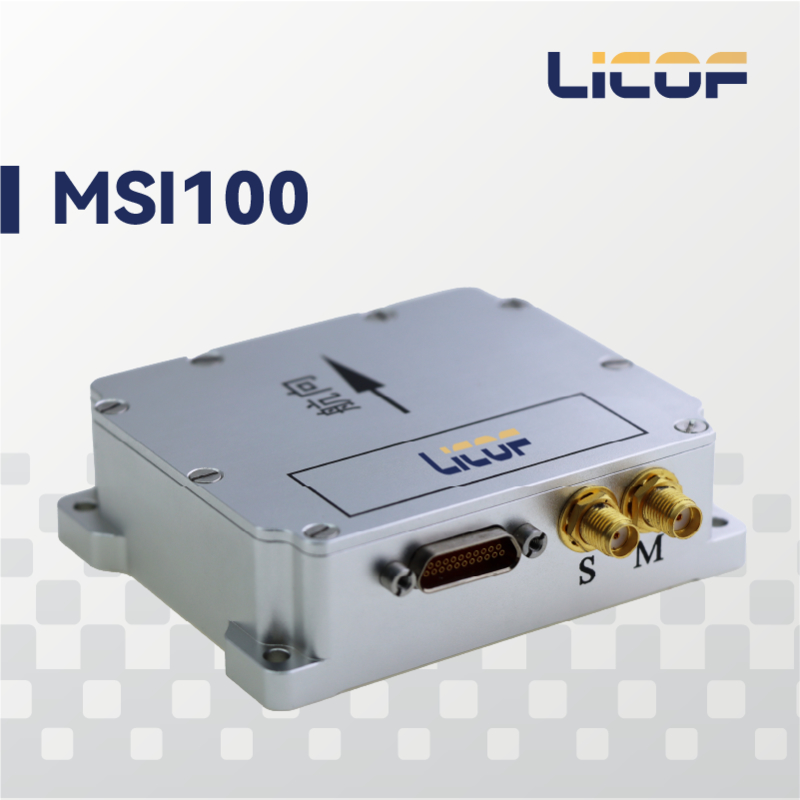

MSI100 is a highly reliable, cost-effective MEMS GNSS/INS system widely applied in navigation, control and measurement fields for vehicles, vessels and UAVs. It supports multiple configurable modes and features a high-precision gyroscope specifically on the Z-axis, maintaining accurate heading measurement over long durations.
| MEMS Gyroscope | |
|---|---|
| Range (°/s) | 500 |
| Full-temperature Bias (°/h, 3σ) | ≤360 (X, Y), ≤60 (Z) |
| Bias Stability (°/h, 10s avg.) | ≤10 (XY), ≤5 (Z) |
| Bias Instability (°/h, allan) | ≤2 (XY), ≤0.5 (Z) |
| MEMS Accelerometer | |
|---|---|
| Range (g) | ±16 |
| Zero Offset (mg, 3σ) | ≤5 |
| Bias Stability (µg, 10s avg.) | ≤100 |
| Integrated Navigation Accuracy | |
|---|---|
| Combined Heading (°, 1σ, Real-time) | 0.15 (1m Baseline Dual-Antenna) 0.5 (Single Antenna, Dynamic) |
| Combined Horizontal Attitude (°, 1σ, real-time) | 0.05° (dual antenna) 0.1° (single antenna) |
| Pure Inertial Navigation Accuracy | |
|---|---|
| Horizontal Attitude (°, 1σ, real-time) | 0.05° (static) 0.5° (dynamic) |
| Heading (°, 1σ, real-time) | 0.5° (dynamic) |
| Electrical/Mechanical Interface | |
|---|---|
| Power (V) | 9~36 (Ripple ≤100mV) |
| Dimensions (mm×mm×mm) | 83×66×24 |
| Weight (g) | 160±20 (Body) |
