Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-FSI400
Document:

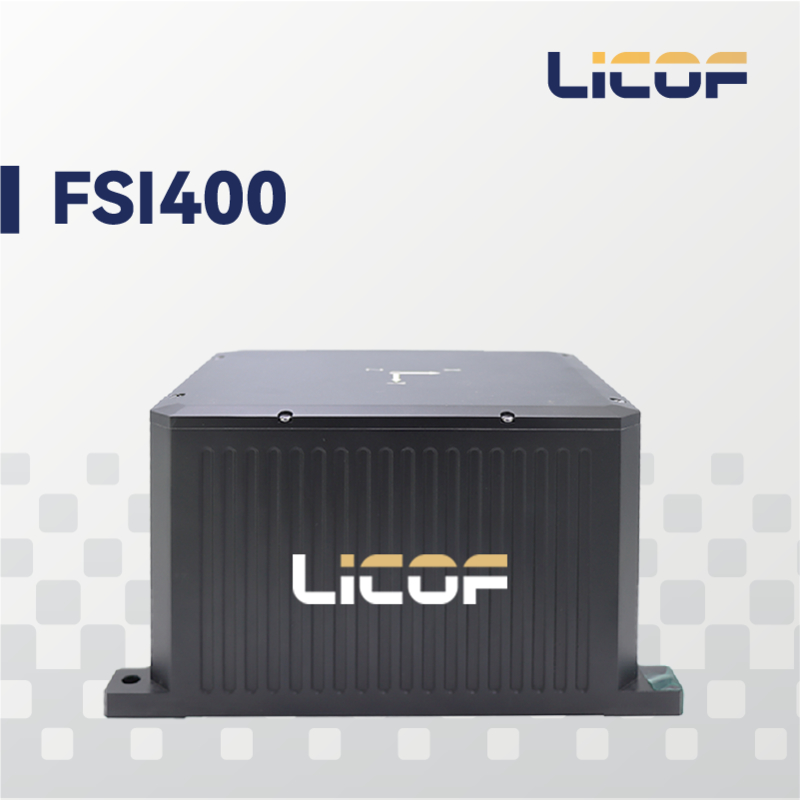

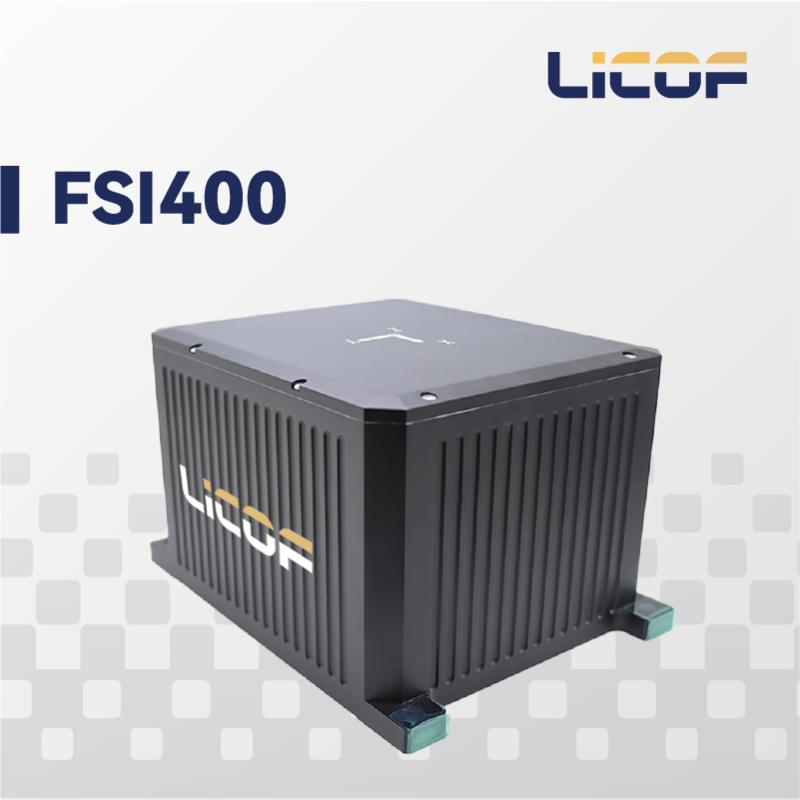

FSI400 is a highly reliable, cost-effective fiber-optic inertial/satellite integrated navigation system, widely applicable in fields such as high-precision vehicle-mounted platforms and long-endurance UAVs, as well as navigation, control, and measurement.
The system uses closed-loop fiber optic gyroscopes (FOG) and high-precision accelerometers, combined with a professional GNSS board, to achieve real-time navigation output. The system output is compatible with mainstream post-processing software to obtain higher-precision navigation results and serve as a benchmark for research platforms.
| Fiber Optic Gyroscope | |
|---|---|
| Range (°/s) | ±300 |
| Full-temperature Bias (°/h, 3σ) | ≤0.01 |
| Bias Stability (°/h, 10s smoothing) | ≤0.01 |
| Bias Instability (°/h, allan) | ≤0.001 |
| MEMS Accelerometer | |
|---|---|
| Range (g) | ±20 |
| Full-temperature Bias (mg, 3σ) | ≤0.1 |
| Bias Stability (μg, 10s smoothed) | ≤10 |
| Bias Instability (μg, allan, typ) | ≤1 |
| Navigation Accuracy | |
|---|---|
| Self-align North-seeking Accuracy (°, 1σ) | ≤0.06secL (1mil) |
| Pure Inertial Accuracy (1σ) | ≤1 nautical mile/1 hour |
| Electrical/Mechanical Interface | |
|---|---|
| Power Supply (V) | 18~36 (ripple ≤100mV) |
| Dimensions (mm×mm×mm) | 212 × 155 × 125 |
| Weight (g) | ≤5000 |
