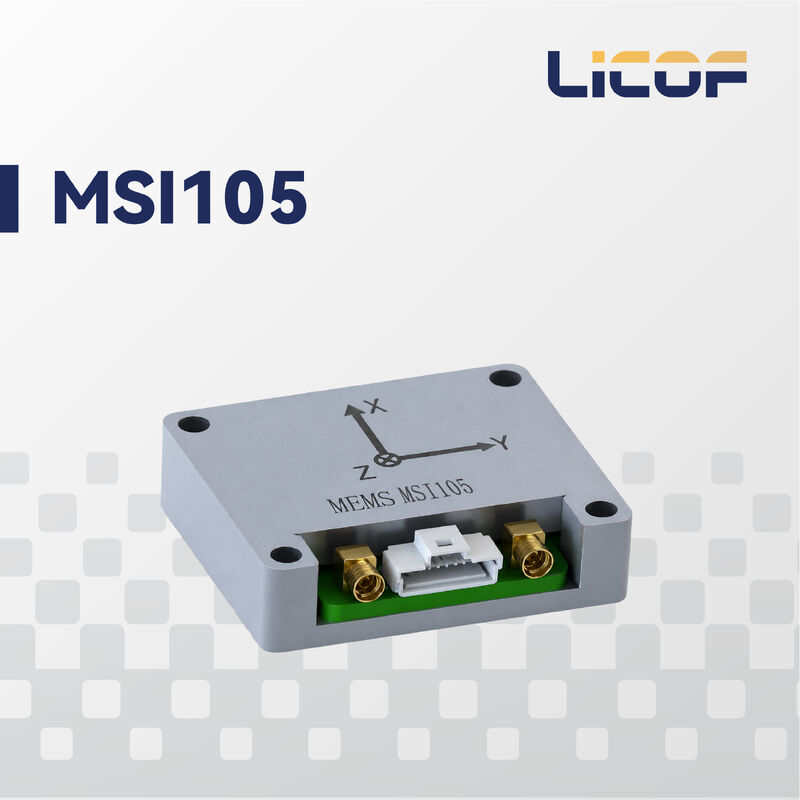

The LKF-MSI105 MEMS Inertial Navigation System is a compact, cost-effective solution designed for navigation, control, and measurement applications, particularly for drones and other mobile platforms.
This integrated navigation system combines a GNSS satellite receiver and information processing functions on a single chip with a built-in IMU. It captures real-time angular rate and acceleration data while receiving GNSS satellite signals from dual antennas or track angles, computing heading angle, three-dimensional velocity, position, and attitude information.
The system features full-temperature zero-point and scale compensation for the internal IMU module, ensuring reliable performance. Based on receiver functionality, it maintains positioning accuracy during short-term satellite outages and attitude accuracy during medium to long-term satellite outages.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±500 |
| Bias @ Full temp. (°/h) | ≤360 |
| Bias Stability (°/h, 10s smoothing) | ≤10 |
| Bias Instability (°/h, Allan) | ≤3 |
| Bias Repeatability (°/h) | ≤10 |
| Angle Random Walk (°/√h) | ≤0.3 |
| Scale Factor Nonlinearity (ppm) | ≤100 |
| Cross-coupling (rad) | ≤0.001 |
| Bandwidth (Hz) | ≥100 |
| Parameter | Specification |
|---|---|
| Range (g) | ±16 |
| Bias (mg) | ≤3 |
| Bias Stability (ug, 10s smoothing) | ≤300 |
| Bias Stability (ug, Allan) | ≤50 |
| Bias Repeatability (ug) | ≤300 |
| Velocity Random Walk (mm/s/√h) | ≤50 |
| Scale Factor Nonlinearity (ppm, ±1g) | ≤300 |
| Cross Coupling (rad) | 0.001 |
| Bandwidth (Hz) | ≥100 |
| Parameter | Specification |
|---|---|
| Combined Heading (°, 1σ, Real-time) | 0.2 (1m baseline dual antenna) 0.5 (single antenna, dynamic) |
| Combined Horizontal Attitude (°, 1σ, Real-time) | 0.1° (dual antenna) 0.2° (single antenna) |
| Combined Horizontal Position (m, 1σ) | 3m (single point) 0.02 +1ppm (RTK) |
| Combined Vertical Position (m, 1σ) | 5m (single point) 0.03 +1ppm (RTK) |
| Combined horizontal speed (m/s, 1σ) | 0.1 |
| Combined vertical speed (m/s, 1σ) | 0.15 |
| Parameter | Specification |
|---|---|
| Power supply (V) | 5V |
| Steady-state power (W) | ≤0.5 |
| Startup time (s) | ≤3 |
| Communication Interface | 2×LVTTL Level UART Interface LVTTL Level PPS Synchronous Output 1×LVTTL Level IMU Acquisition Synchronous Output |
| Maximum Update Rate (Hz) | 100 |
| Dimensions (mm×mm×mm) | 41.5×35.5×9.5 |
| Weight (g) | <50 |
| Parameter | Specification |
|---|---|
| Operating Temperature (℃) | -40 to +85 |
| Storage temperature (℃) | -55 to +85 |
| Vibration (g, Rms) | 20~2000Hz, 4.08 |
| Shock (g) | 1000g/1ms |
| Parameter | Specification |
|---|---|
| MTBF (h) | 10000 |
