Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-FMTP

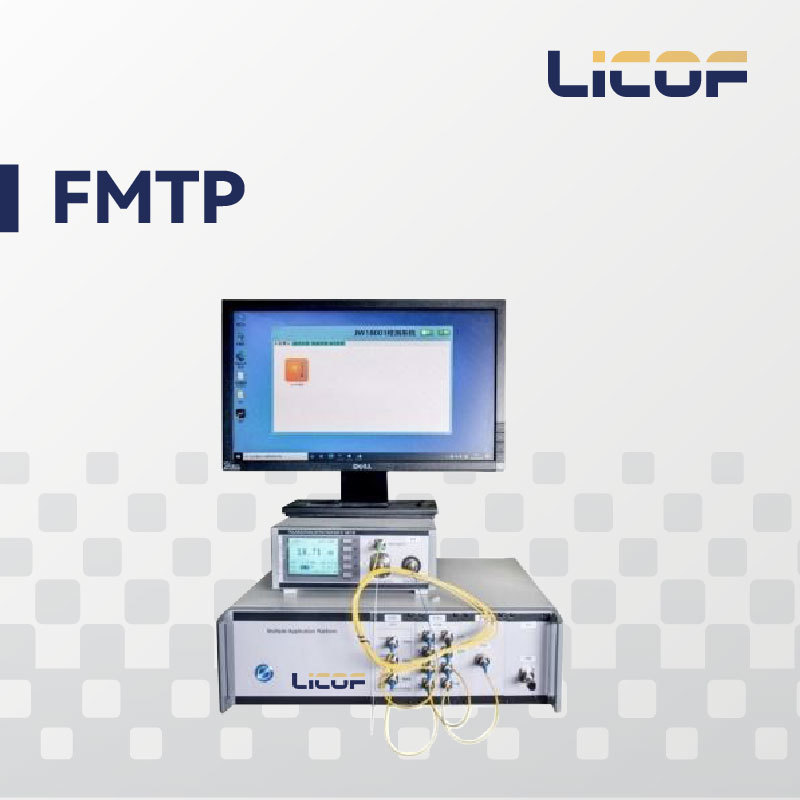

LKF-FMTP Fiber Coil Multifunction Test Platform integrates OTDR, polarization extinction ratio test and light leakage (leaking light indicates damage to the coil’s fiber) check functions. The user can measure the coil’s length, loss, PER, and check whether the coil’s fiber is damaged and leaking light simultanesously on this platform, the test reports can be automatically generated through the upper computer software, which can be networked and stored in a database. It has the advantages of simple and fast operation, automatic generation of reports and storage.
Equipment Composition
|
FMTP Fiber Coil Multifunction Test Platform |
|
|
Extinction Ratio Meter |
|
|
Wavelength |
1200~1700 nm |
|
Input Power Range |
-40~+10dBm |
|
Dynamic Range |
-30~+10dBm: 50dB -40~-30dBm: 40dB |
|
Accuracy |
PER≤2dB:≤±0.1dB PER<30dB:≤±0.3dB PER≥30dB:＜±0.1dB |
|
Light Source |
SLED or ASE |
|
OTDR (optical time domain reflectometer) |
|
|
Wavelength |
1310/1550 nm |
|
Dynamic Range |
30/28 dB |
|
Distance Uncertainty |
± (1m+0.005%×distance+sampling interval) |
|
Distance Range |
1 to 120 km |
|
Light Leakage Check |
Inject red light into coil’s fiber to check any leakage of fiber coil, and take photo through a camera |
Main features Integrating the functions of OTDR, PER and light leakage check Easy to operate Complete tests at once Generating test report automatically
Application Areas Testing of Fiber coils Testing of PM fiber or SM fiber
