Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-FS70
Document:
Product Overview

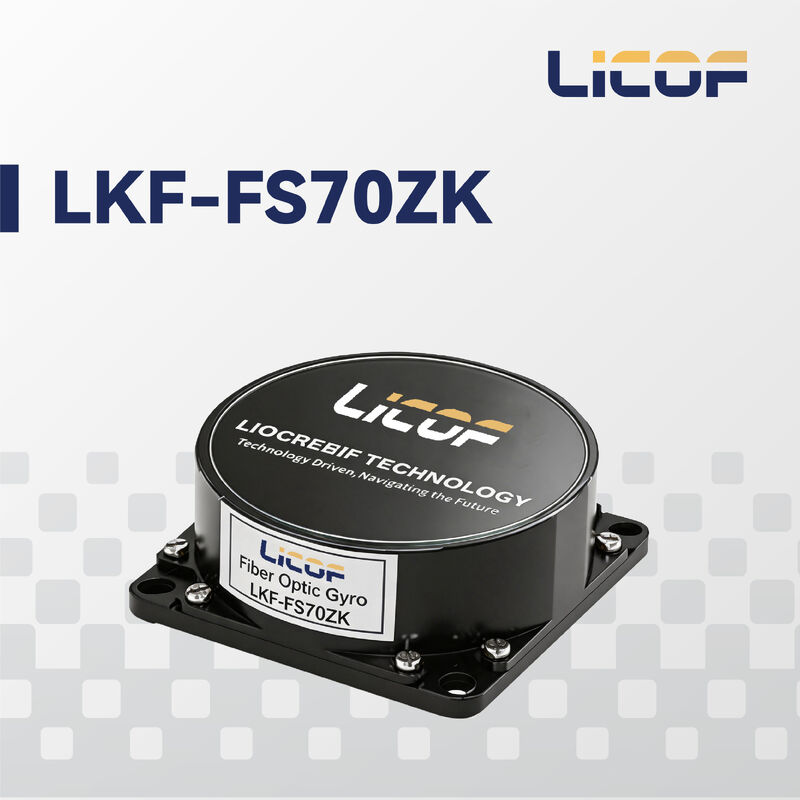

The LKF-FS70ZK is a miniaturized fiber optic gyroscope with integrated circuitry and optical paths that break from traditional designs. It serves as an ideal high-precision angular rate sensor for control applications and is widely used in inertial measurement. Built on proven designs with engineering optimizations for mass production, it delivers exceptional cost performance. Featuring compact size, light weight, low power consumption, and a simple interface, the LKF-FS70ZK is the top choice for navigation and control fields.
Main Features
Application Fields
LKF-FS70ZK Single-Axis FOG Performance Parameters
| Parameter | A | B | Remarks |
|---|---|---|---|
| Bias Stability (°/hr ,1σ, 10s) | ≤0.05 | ≤0.03 | 2h Continuous Test, 10s avg. Result |
| Bias Repeatability (°/hr ,1σ) | ≤0.05 | ≤0.03 | Calculated Results from 6 Test Runs |
| Angle Random Walk (ARW) (°/√h) | ≤0.005 | ≤0.003 | |
| Scale Factor Nonlinearity (ppm ,1σ) | ≤10 | ≤10 | Room Temperature |
| Scale Factor Repeatability (ppm ,1σ) | ≤20 | ≤10 | Room Temperature |
| Full-Temp. Scale Factor Repeatability (ppm ,1σ) | ≤300 | ≤200 | -40℃～+60℃ |
| Dynamic Range (°/s) | ±500 | ||
| Magnetic Sensitivity (°/hr/Gs) | ≤0.02 | ||
| Operating Temperature (℃) | -40～+70 | ||
| Storage Temperature (℃) | -50～+70 | ||
| Vibration Condition (g, Hz) | 4.2,20～2000 | No resonance in the scanning | |
| Weight (g) | 280±30 | ||
| Dimensions (mm) | 70*70*30 | ||
| Note: This series of gyroscopes features hermetic sealing. | |||
