Place of Origin:
China
Brand Name:
Liocrebif
Certification:
GJB 9001C-2017
Model Number:
LKF-MTG200
Document:

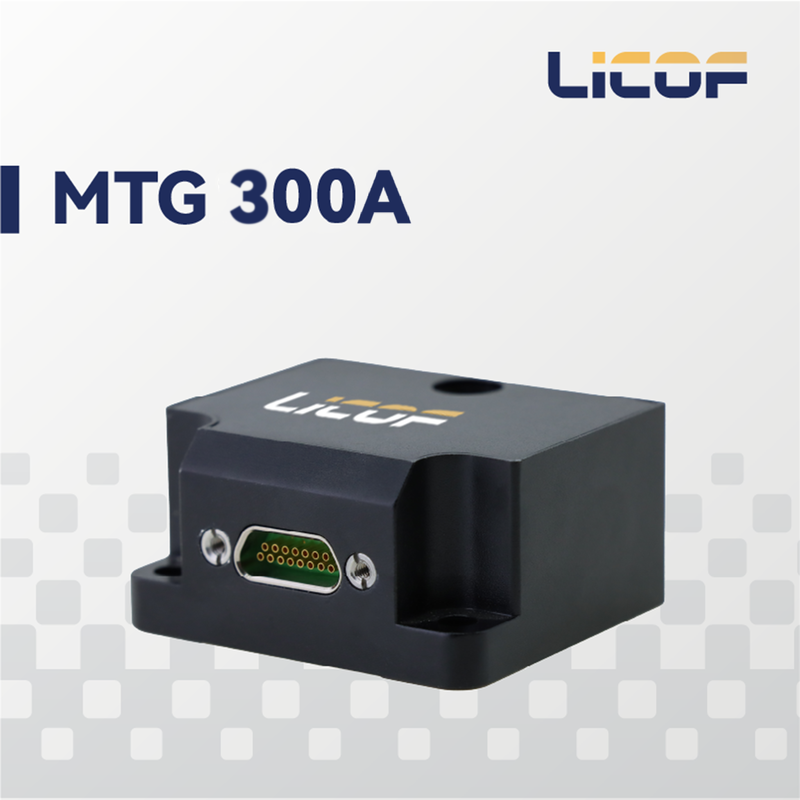

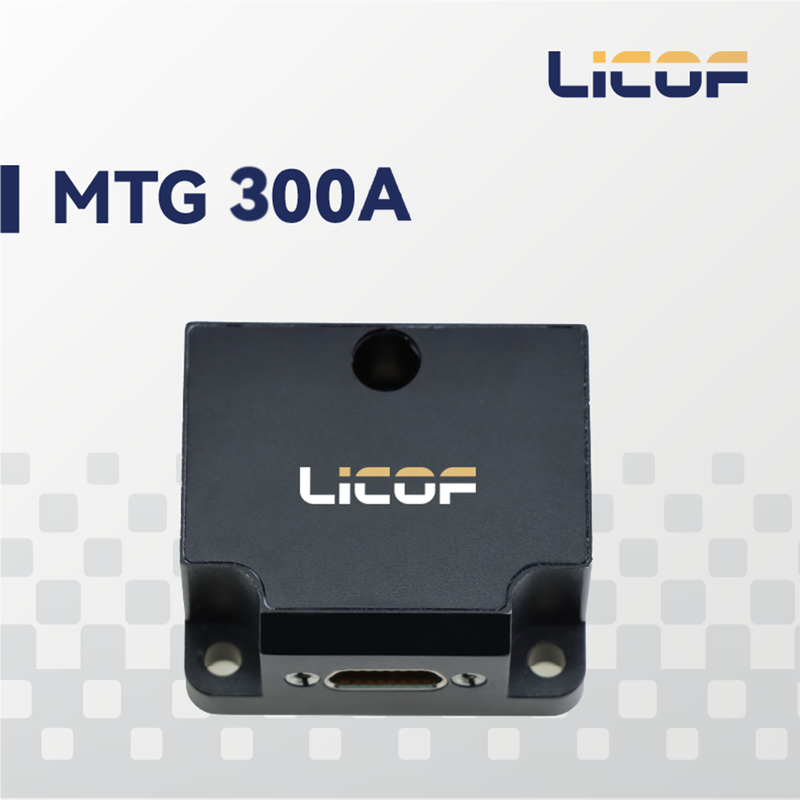

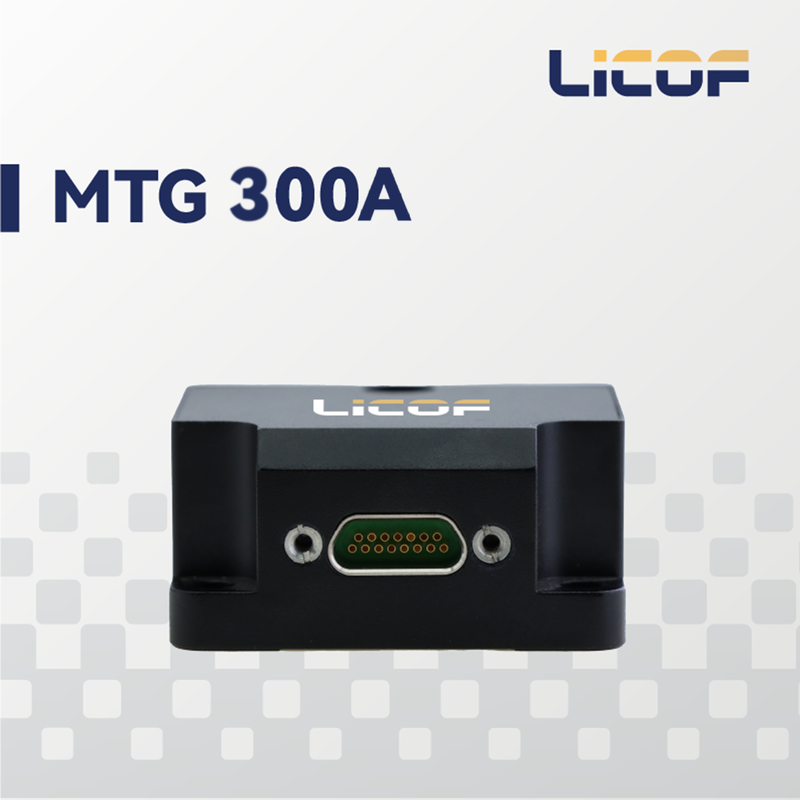

The LKF-MTG300A MEMS three-axis gyro assembly is a high-reliability, cost-effective 3-axis MEMS gyro assembly, applicable to navigation and control fields of low-to-medium Earth orbit satellites. Assembly integrates high-performance MEMS gyroscopes inside an independent mechanical housing. The built-in gyroscopes adopt domestically manufactured MEMS inertial sensor technology reaching advanced industry level.
The three-axis MEMS gyroscope senses the angular motion of the carrier. Full-temperature compensation for Bias, scale factor and non-orthogonality error is implemented inside the system, enabling sustained high measurement accuracy during long-term operation.
| Parameter | Technical Index |
|---|---|
| Gyroscope | |
| Measurement Range (°/s) | ±100 |
| Full-Temperature Bias (°/h) | ≤5 |
| Bias Stability (°/h, 10s averaging window) | ≤0.1 |
| Bias Stability (°/h, 100s averaging window) | ≤0.05 |
| Bias Instability (°/h, Allan variance method, typical) | ≤0.02 |
| Bias Repeatability (°/h) | ≤0.1 |
| Angular Random Walk (°/√h) | ≤0.005 |
| g-Dependent Drift (°/h/g) | ≤0.5 |
| Scale Factor Nonlinearity (ppm) | ≤150 |
| Bandwidth (Hz) | ≥12 |
| Electrical & Mechanical Interfaces | |
| Supply Voltage (V) | 5~12 (ripple ≤100 mV) |
| Power Consumption (W) | ≤1.5 |
| Startup Time (s) | ≤2 |
| Communication Interface | 1 channel RS-422 |
| Data Update Rate | Polling response output, max. 200 Hz |
| Overall Dimension (mm×mm×mm) | 44.8×38.6×21.5 |
| Weight (g) | ≤60 |
| Operating Environment | |
| Operating Temperature (℃) | -40 ~ 85 |
| Storage Temperature (℃) | -55 ~ 85 |
| Vibration | 7.72 g (RMS) |
| Shock | 500 g / 1 ms pulse |
